NJG1555KB2
- 10 -

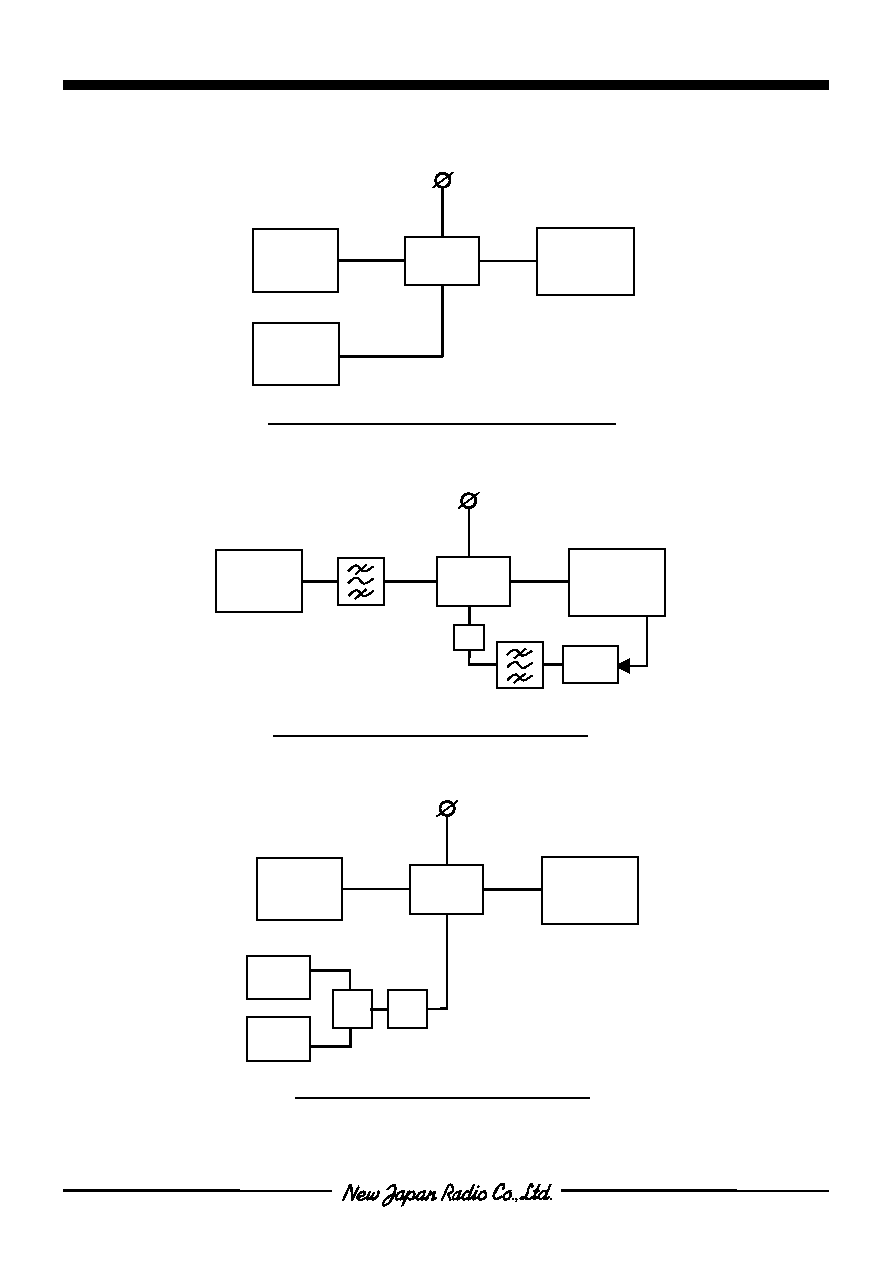

nMEASURING BLOCK DIAGRAM
Conversion Gain Measuring Block Diagram
IF OUT
LOCAL IN
RF IN
SG
(LOCAL)
SG
(RF)
D.U.T.
PCB
Spectrum
Analyzer
VMIX=VLO=2.7V
IF OUT
RF IN
LOCAL IN
SG
(RF1)
SG
(RF2)
SG
(LOCAL)
D.U.T.
PCB
Spectrum
Analyzer
ATT
OIP3, IIP3 Measuring Block Diagram
VMIX=VLO=2.7V
Power
Comb.
BPF
BPF
IF OUT
LOCAL IN
RF IN
SG
(LOCAL)
D.U.T.
PCB
NF Meter
Noise
Source
Noise Figure Measuring Block Diagram
VMIX=VLO=2.7V
6dB
ATT
