ICPL0452 / ICPL0453 / ICPL0500 / ICPL0501
ISOCOM
COMPONENTS
Note:
Common mode transient immunity in logic high level is the maximum tolerable (positive) dVCM/dt on the leading edge of
the common mode pulse signal VCM, to assure that the output will remain in a logic high state (i.e., VO > 2.0V).
Common mode transient immunity in logic low level is the maximum tolerable (negative) dVCM/dt on the trailing edge of
the common mode pulse signal, VCM, to assure that the output will remain in a logic low state (i.e., VO < 0.8V).

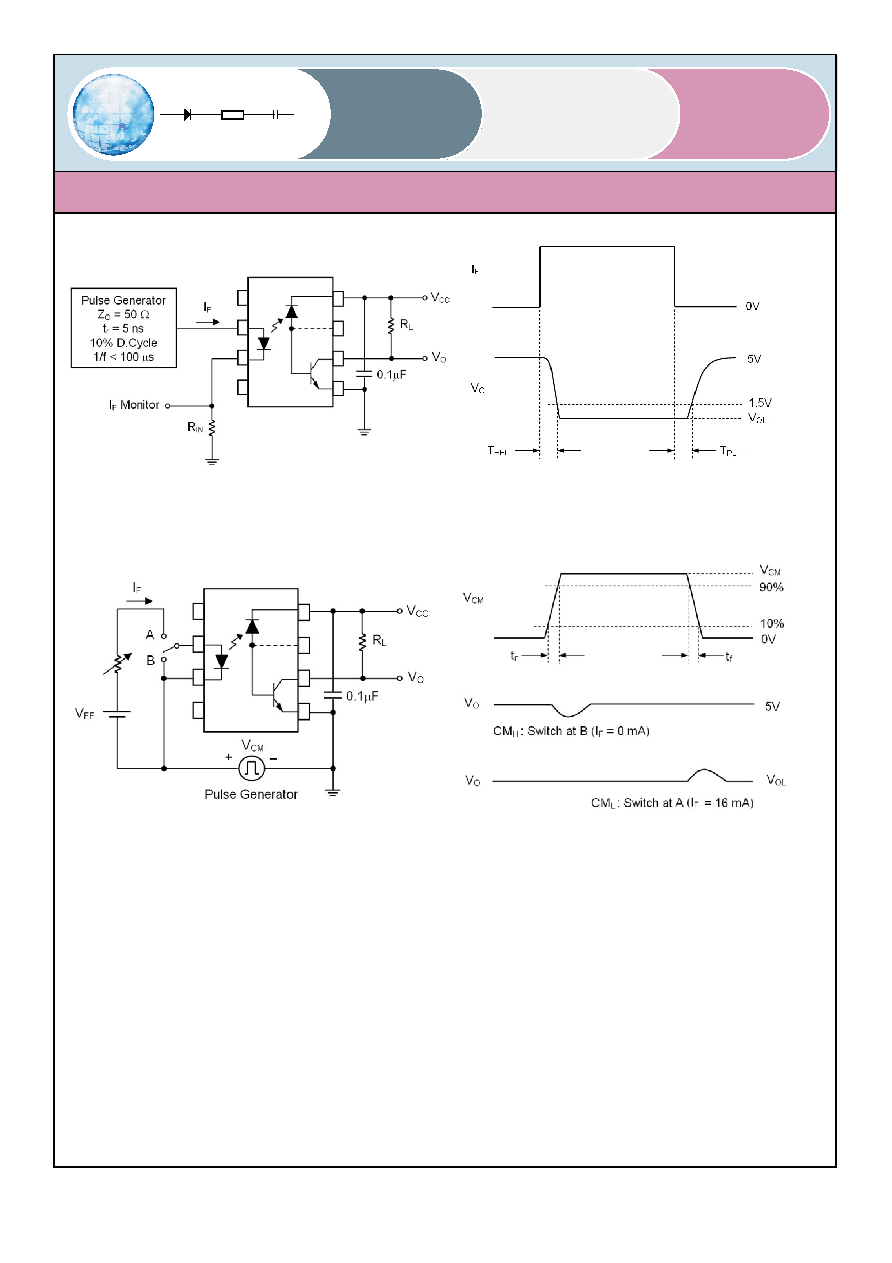

Fig 8 Common Mode Transient Immunity Test Circuit
Fig 7 Switching Time Test Circuit
