Data Sheet

AD8422

12.8μs TO 0.01%

15.1µs TO 0.001%

0.002%/DIV

5V/DIV

0μs/DIV

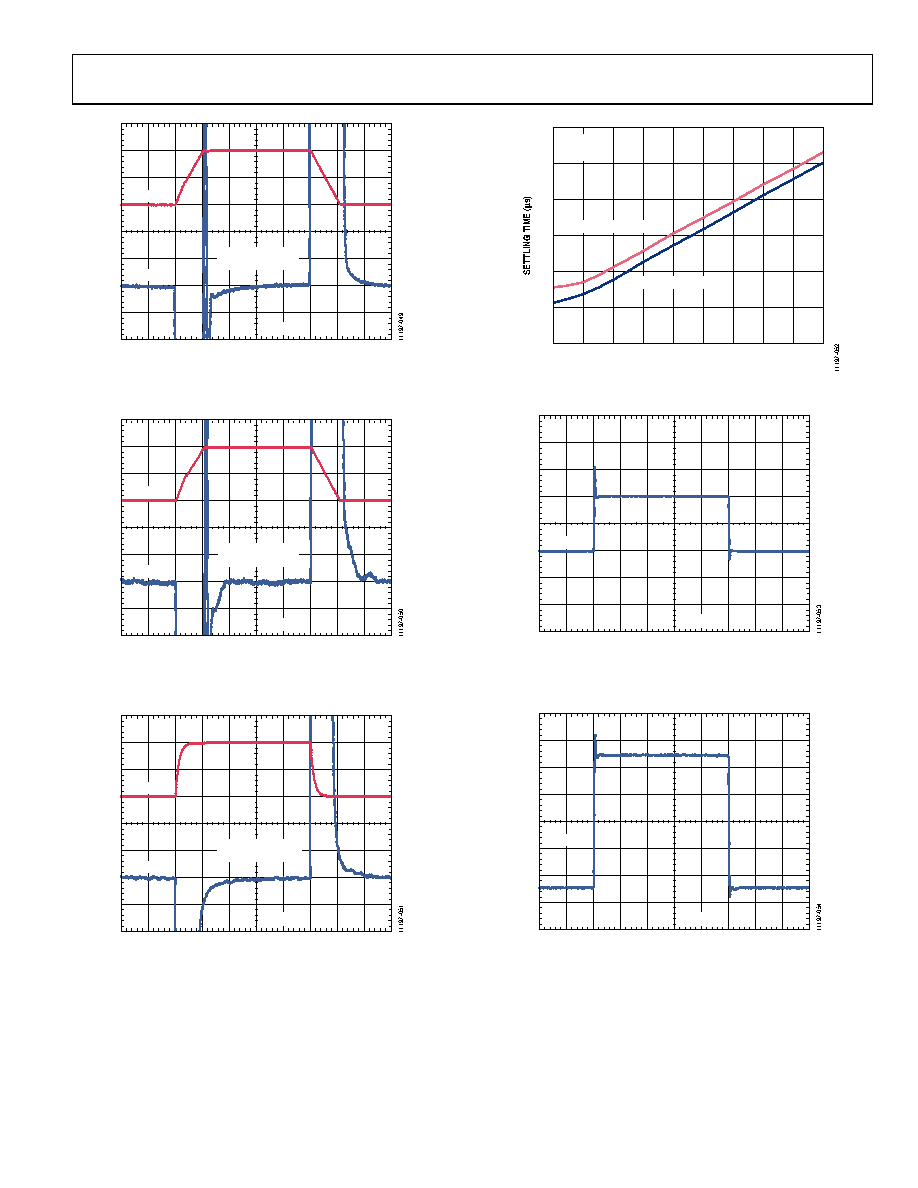

Figure 46. Large Signal Pulse Response and Settling Time (G = 10), 10 V Step,

VS = ±15 V, RL = 2 kΩ, CL = 100 pF

2.0μs TO 0.01%

15.2µs TO 0.001%

0.002%/DIV

5V/DIV

0μs/DIV

Figure 47. Large Signal Pulse Response and Settling Time (G = 100),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

80μs TO 0.01%

160µs TO 0.001%

0.002%/DIV

5V/DIV

00μs/DIV

Figure 48. Large Signal Pulse Response and Settling Time (G = 1000),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

STEP SIZE (V)

SETTLED TO 0.01%

SETTLED TO 0.001%

RL = 2kΩ

CL = 100pF

Figure 49. Settling Time vs. Step Size (G = 1)

50mV/DIV

10µs/DIV

Figure 50. Small Signal Pulse Response (G = 1), RL = 2 kΩ, CL = 100 pF

20mV/DIV

10µs/DIV

Figure 51. Small Signal Pulse Response (G = 10), RL = 2 kΩ, CL = 100 pF

Rev. A | Page 17 of 24
