2.5x2.0mm Auto Grade Oscillator

O2HA

(Former FA200 Series)

DATASHEET

7/29/2020 Updated termination finish and MSL info.

© Copyright 2020 Fox Electronics. All rights reserved

Title / Description: O2HA SERIES STANDARD SPECIFICATIONS

Drawing Number: O2HA-DOC-1

Revision: C

Part Number:

Cage: 61429

Draftsperson: BEC

Approved: MAJ

Revision Date: 07/29/2020

Page 6 of 6

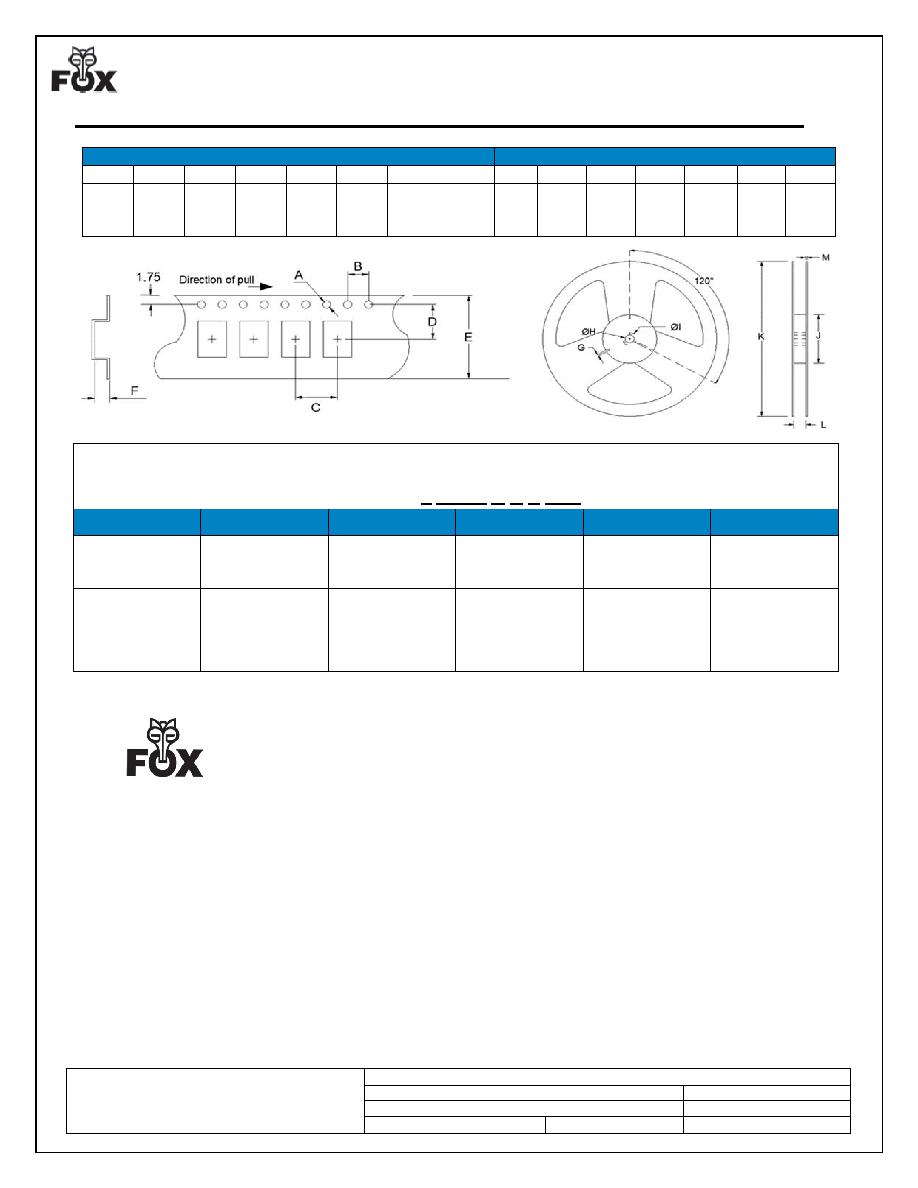

Tape Specifications (millimeters)

Reel Specifications (millimeters)

A

B

C

D

E

F

Reel Qty

G

H

I

J

K

L

M

Ø1.5

4.0

4.0

3.5

8.0

1.15

-T3 = 3,000

-T2 = 2,000

-T1 = 1,000

2.0

Ø13

Ø21

Ø60

Ø180

9.0

2.0

Available Options & Part Identification*

Example: F O2HA C B P 25.0

F

O2HA

C

B

P

25.0

Fox

Model Number

Voltage

Stability*

Operating

Temperature

Frequency

(MHz)

K = 1.8V±5%

H = 2.5V±5%

C = 3.3V±10%

V = 1.7V~3.63V

A = ±100PPM

B = ±50PPM

D = ±25PPM

M = -40 to +85°C

P = -40 to +105°C

I = -40 to +125°C

*Not all frequencies in the frequency range, nor every combination of stability, temp range, and voltage available.
