40.3 Control Relays and Timers
EASY Intelligent Relays

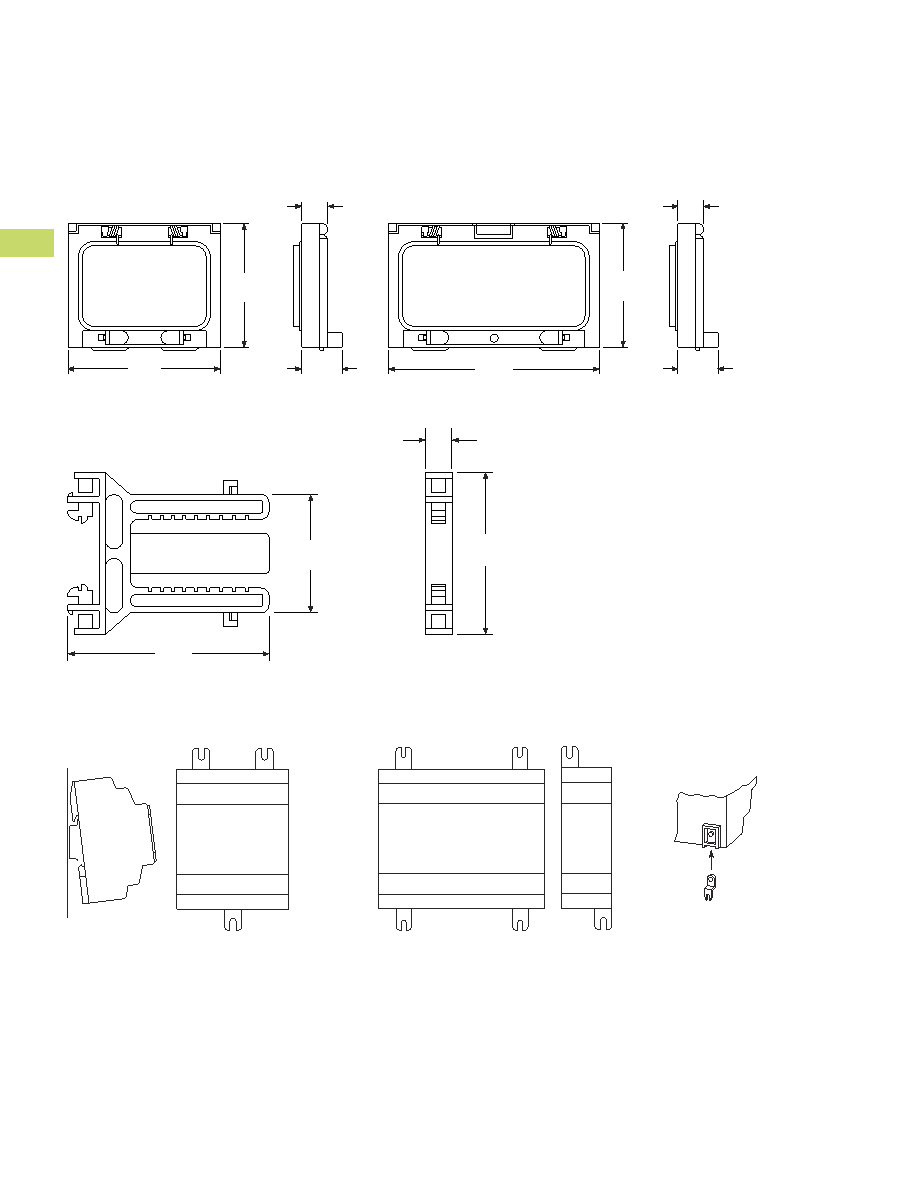

Approximate Dimensions in Inches (mm)
SKF-FF4 and SKF-FF6 Series, Drawing Number MD05013014E
SKF-HA Series, Drawing Number MD05013015E
ZB4-101-GF1 Series
3.70
(94.0)
2.99
(76.0)
0.98
(25.0)
0.63
(16.0)
0.63
(16.0)
5.12
(130.0)
2.99
(76.0)
0.98
(25.0)
SKF-FF4
SKF-FF6
2.60
(66.0)
0.43
(11.0)
3.23
(82.0)
1.89
(48.0)
SKF-HA
Fitting on 35 mm Top-Hat Rail
Fitting on Mounting Plate (Horizontal)
ZB4-101-GF1
* 3 fixing feet sufficient
**
**
