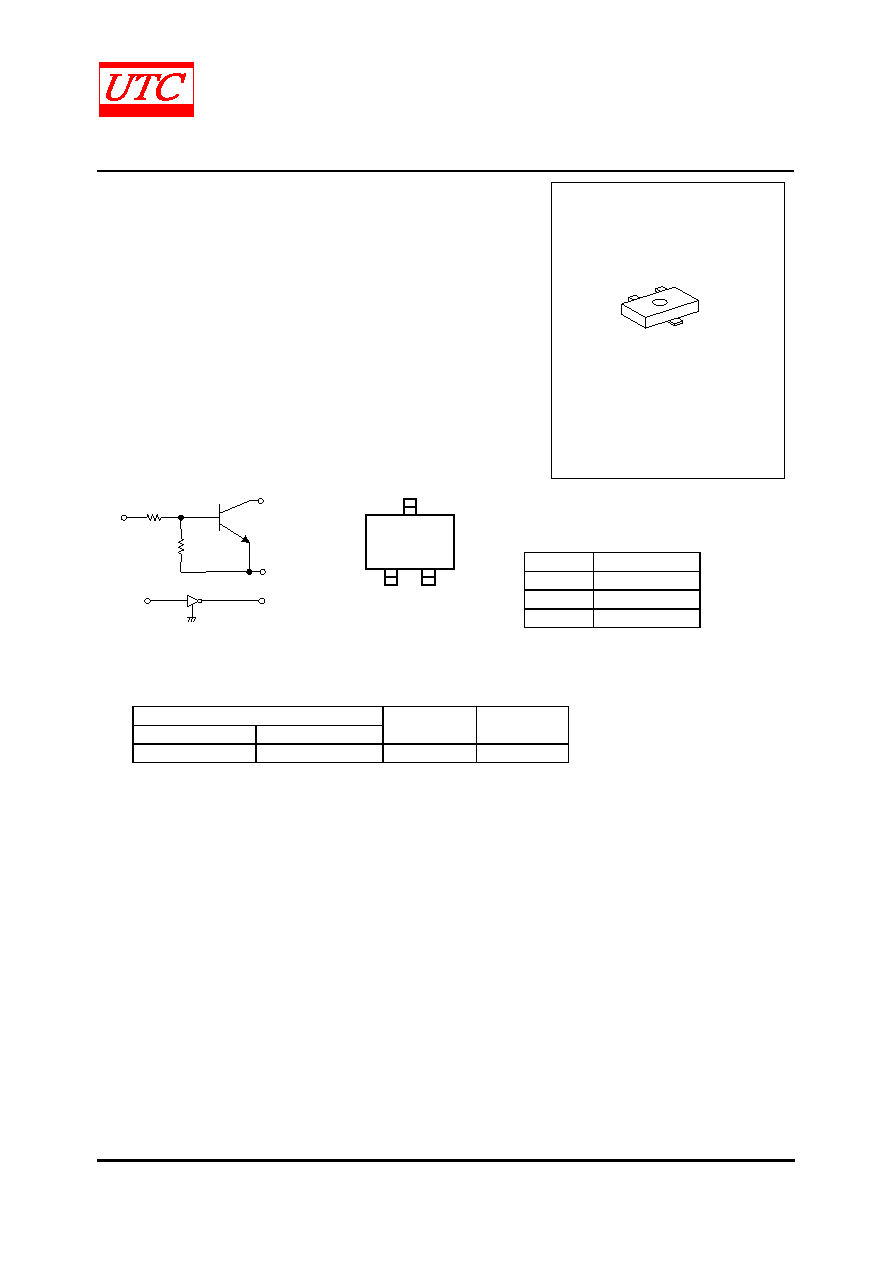

UNISONIC TECHNOLOGIES CO.,

DTC143E

NPN EPITAXIAL SILICON TRANSISTOR

NPN DIGITAL TRANSISTOR

(BUILT-IN RESISTORS)

FEATURES

*Built-in bias resistors enable the configuration of an inverter

circuit without connecting external input

resistors (see the equivalent circuit).

*The bias resistors consist of thin-film resistors with

complete isolation to allow positive biasing of the input

They also have the advantage of almost completely

eliminating parasitic effects.

*Only the on / off conditions need to be set for operation,

making device design easy.

EQUIVALENT CIRCUIT

IN

OUT

OUT

IN

GND

GND

MARKING

SOT-323

1

2

3

*Pb-free plating product number:DTC143EL

PIN CONFIGURATION

PIN NO.

PIN NAME

1

GND

2

IN

3

OUT

CE3

ORDERING INFORMATION

Order Number

Normal

Lead free

Package

Packing

DTC143E-AL3-R DTC143EL-AL3-R

SOT-323

Tape Reel

www.unisonic.com.tw

1

Copyright © 2005 Unisonic Technologies Co.,

QW-R220-015.A
