XU Datasheet

Absolute Maximum Ratings

Stresses above the ratings listed below can cause permanent damage to the device. The ratings, which are standard values for Renesas

commercially rated parts, are stress ratings only. Functional operation of the device at these or any other conditions above those

indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended

periods can affect product reliability. Electrical parameters are guaranteed only over the recommended operating temperature range.

Mechanical Testing

* MSL level does not apply.

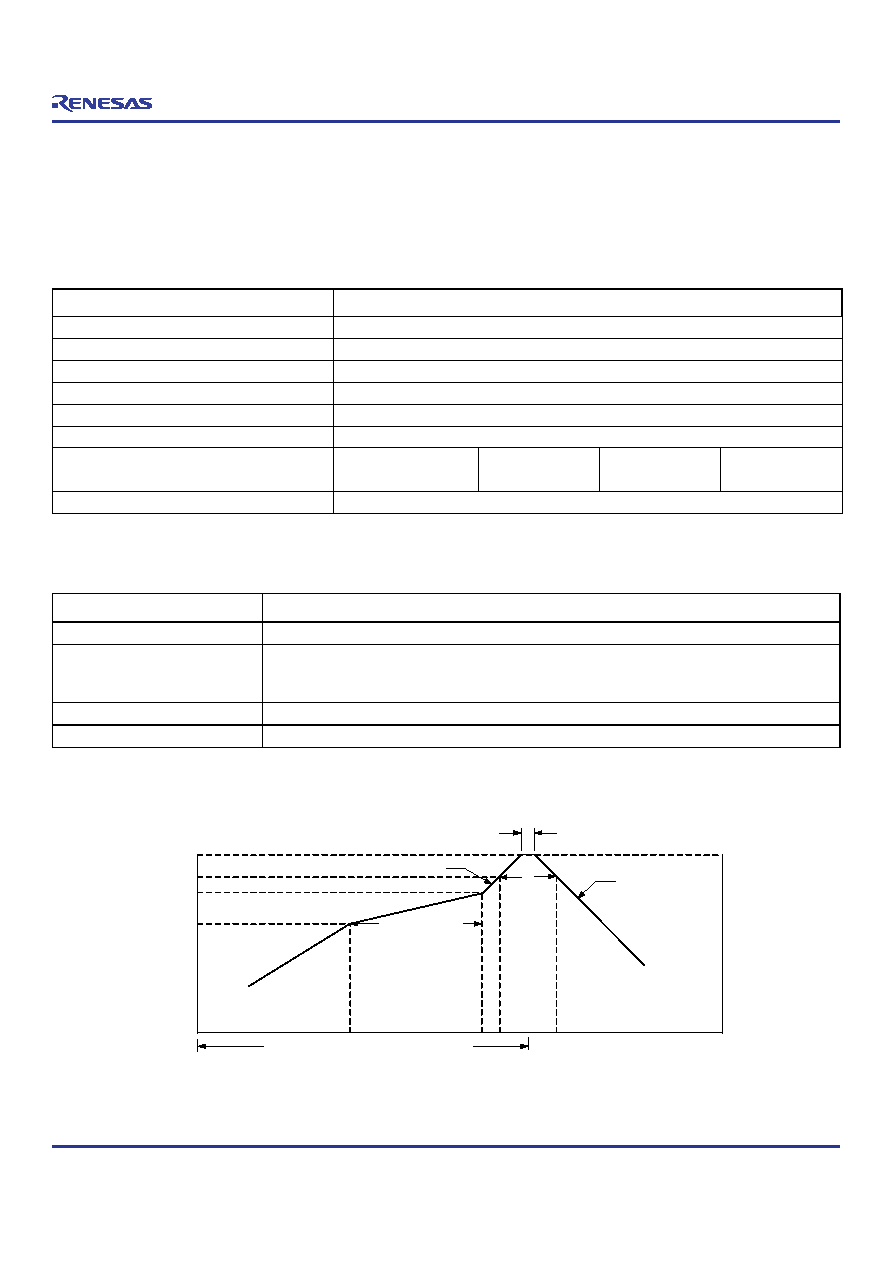

Solder Reflow Profile

Table 3. Absolute Maximum Ratings

Item

Rating

VDD

-0.5 to +5.0V

E/D

-0.5V to VDD + 0.5V

OUT

-0.5V to VDD + 0.5V

Storage Temperature

-55°C to 125°C

Maximum Junction Temperature

125°C

Core Current

65mA maximum

Theta JA

JU6

75.9 °C/W

JS6

89.6 °C/W

Theta JB

48.6°C/W

54.3 °C/W

ESD Rating–Human Body Model

1000V

Table 4. Mechanical Testing *

Parameter

Test Method

Mechanical Shock

Half-sine wave with 0.3ms 3000G. X, Y, Z each direction 1 time.

Mechanical Vibration

Frequency: 10 – 55MHz amplitude: 1.5mm.

Frequency: 55 – 2000Hz peak value: 20G.

Duration time: 4H for each X,Y,Z axis; total 12hours.

High Temp Operating Life (HTOL)

2000 hours at 125°C (under power).

Hermetic Seal

Gross leak (air leak test). Fine leak (Helium leak test) He-pressure: 6kgf/cm² 2 hours.

tP

10 seconds Max within5°C of

260°C peak

Ramp down not to

exceed 6°C/s

Ramp up 3°C/s Max

120 ±20 seconds in

pre-heating area

50 ±10 seconds

above 225°C

reflow area

400 seconds Max from +25°C to 260°C peak

25°C

160°C

180°C

225°C

260°C
