THBT200S Datasheet(PDF) 5 Page - STMicroelectronics

Part # THBT200S
Description  TRANSIENT VOLTAGE SUPPRESSOR FOR SLIC PROTECTION
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

THBT200S Datasheet(HTML) 5 Page - STMicroelectronics

  THBT200S Datasheet HTML 1Page - STMicroelectronics THBT200S Datasheet HTML 2Page - STMicroelectronics THBT200S Datasheet HTML 3Page - STMicroelectronics THBT200S Datasheet HTML 4Page - STMicroelectronics THBT200S Datasheet HTML 5Page - STMicroelectronics THBT200S Datasheet HTML 6Page - STMicroelectronics THBT200S Datasheet HTML 7Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 5 / 7 page
background image
FUNCTIONAL DESCRIPTION
RING
RELAY
RING
GENERATOR
PTC
PTC
LINE A
LINE B
THBT200S
-V
SLIC
T
E
S
T
R
E
L
A
Y
bat
TIP
RING
S
THDTxxx
or
LCPxxx

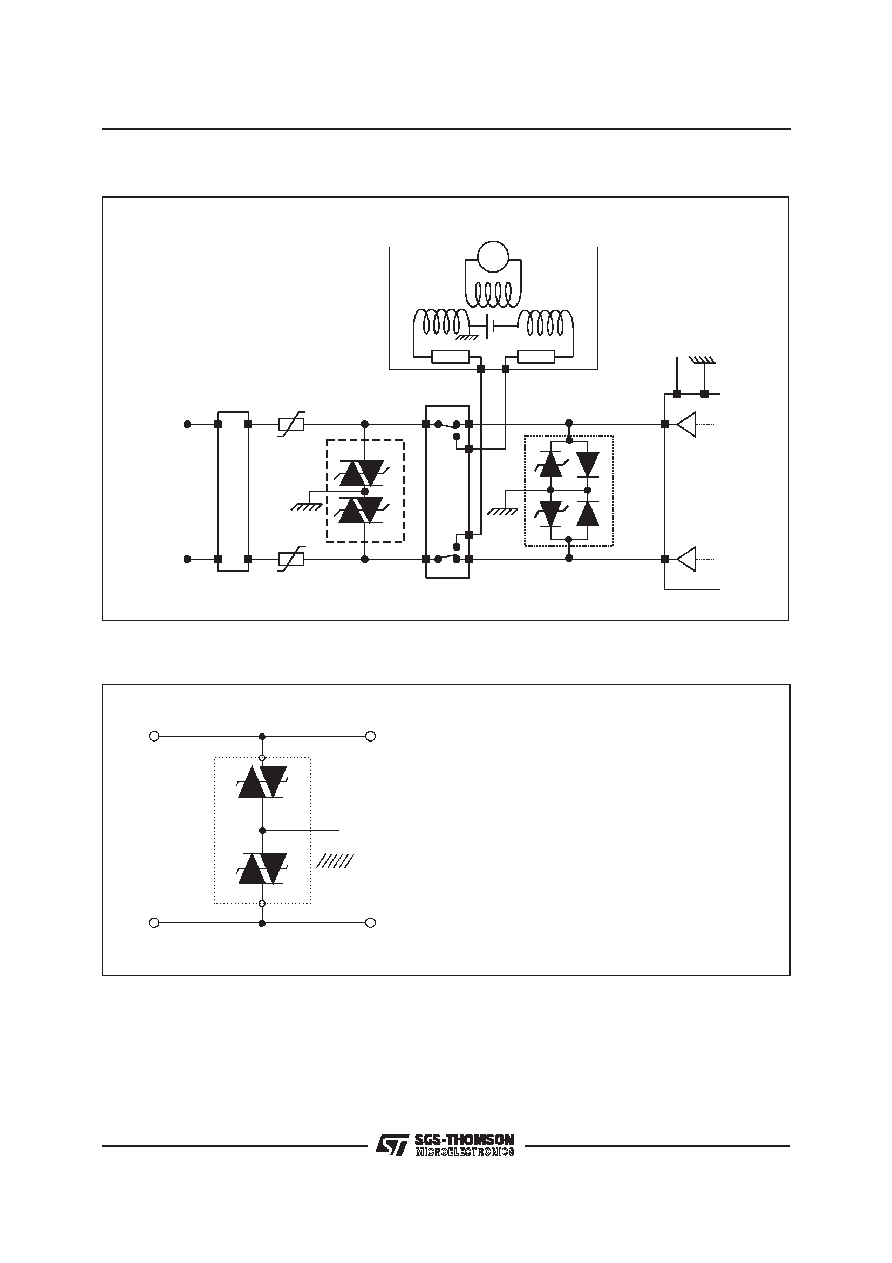

APPLICATION CIRCUIT
Typical line card protection concept
Line A
Line B
Tip
Ring
LINE A AND LINE B PROTECTION.
Each line (TIP and RING) is protected by a bidi-
rectional Trisil, which triggers at a maximum volt-
age equal to the VBO.
®
THBT200S
5/7
