80960KB
33
4.0
WAVEFORMS
Figures 27, 28, 29 and 30 show the waveforms for various transactions on the 80960KB’s local bus.

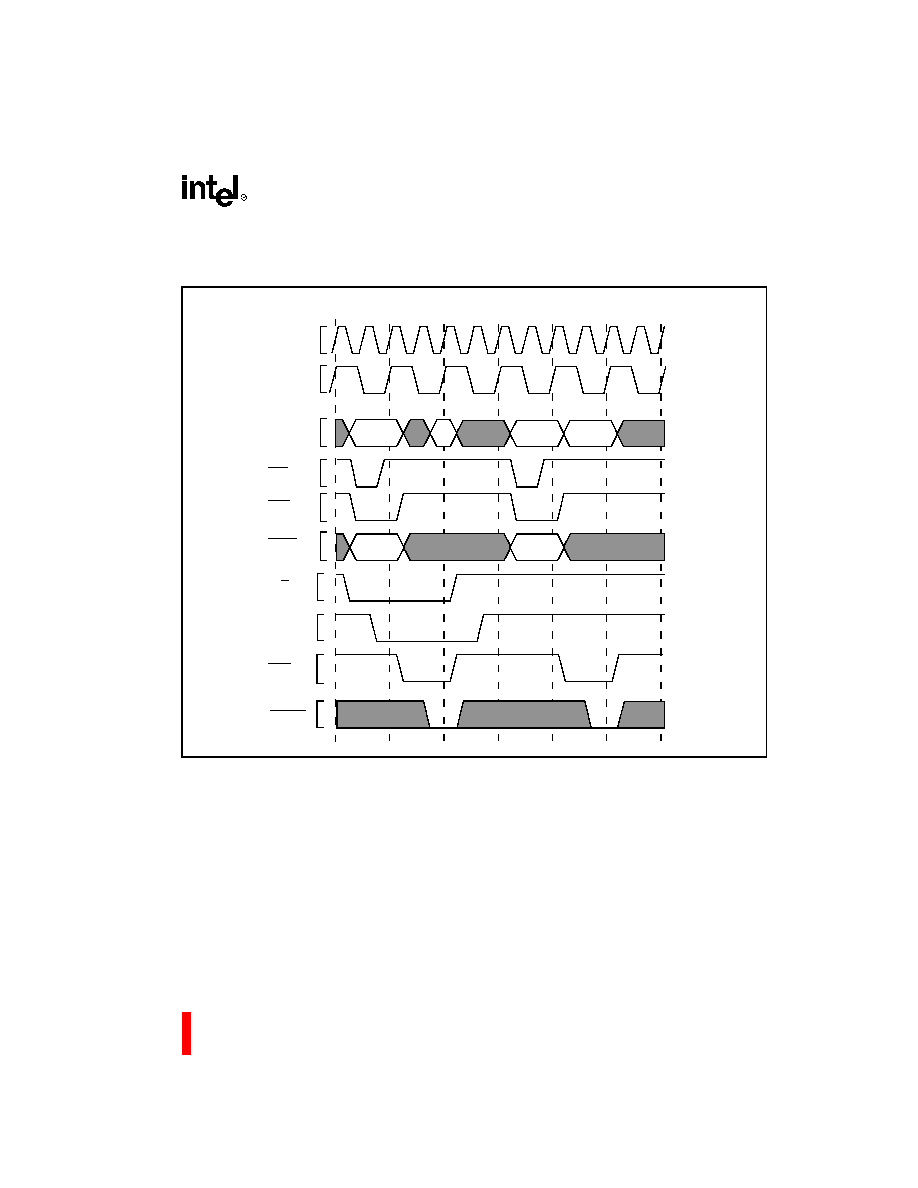

Figure 27. Non-Burst Read and Write Transactions Without Wait States
Ta
Td
Tr
Ta
Td
Tr
CLK2
CLK
LAD31:0
ALE
ADS
BE3:0
W/R
DT/R
DEN
READY
