UD38501G-SH2-R Datasheet(PDF) 5 Page - Unisonic Technologies |
|
|
|||||||||||||||||||||||||||||
UD38501G-SH2-R Datasheet(HTML) 5 Page - Unisonic Technologies |
|
|

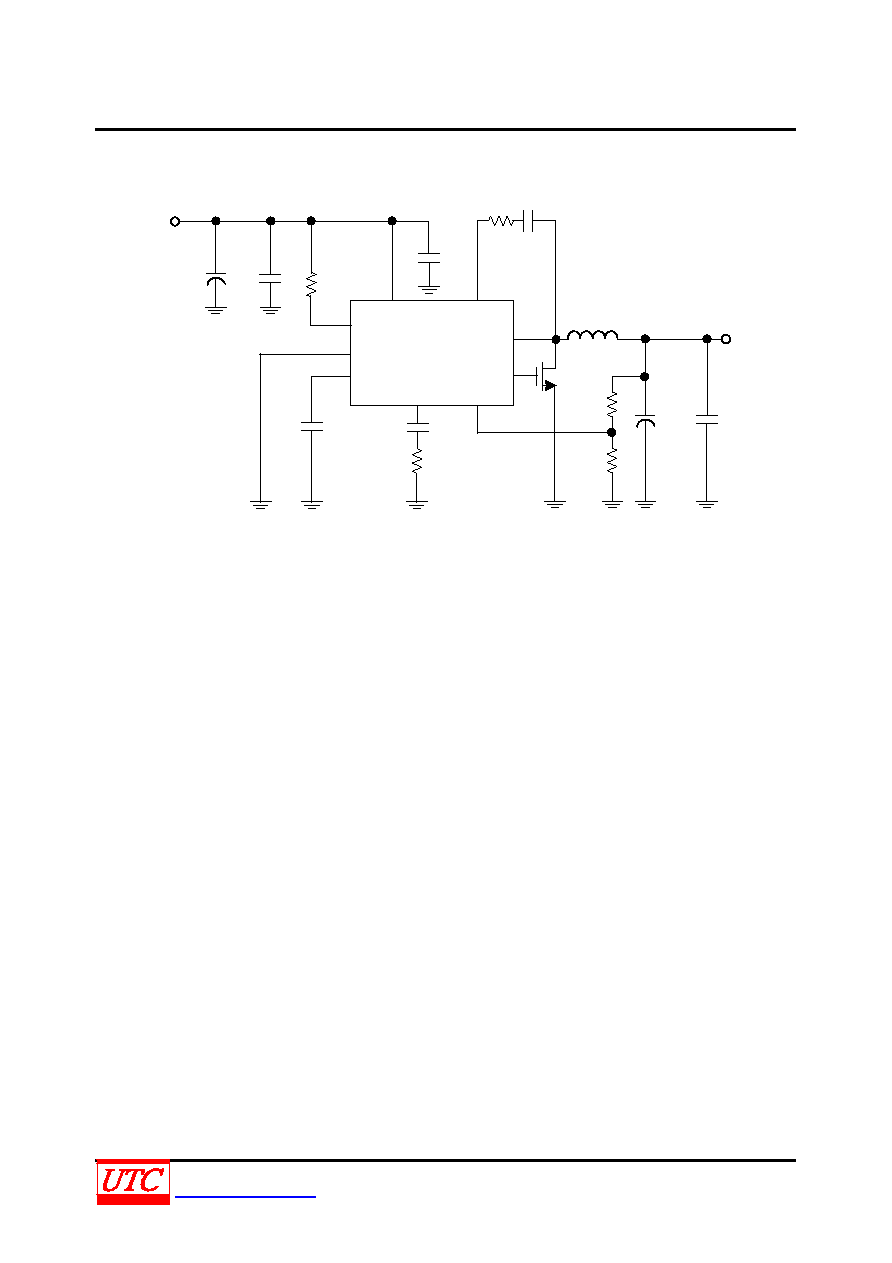

5 / 7 page  UD38501 CMOS IC UNISONICTECHNOLOGIESCO.,LTD 5 of 7 www.unisonic.com.tw QW-R115-009.A TYPICAL APPLICATION CIRCUIT IN EN PDA(GND) VDD COMP BS SW LG FB UTC UD38501 VOUT=VFB × (1+R1/R2), VFB= 1.00V, R2 suggest 10k~30kΩ Input C17 220µF 50V C7 10µF 20V R4 100kΩ C6 0.1µF R5 0Ω C5 100nF L1 33µH Output 5V 5A R1 40kΩ C8 22µF 10V C2 470µF 10V R2 10kΩ C3 3.3nF R3 15kΩ C4 0.1µF Q1 NMOS |
|
|
