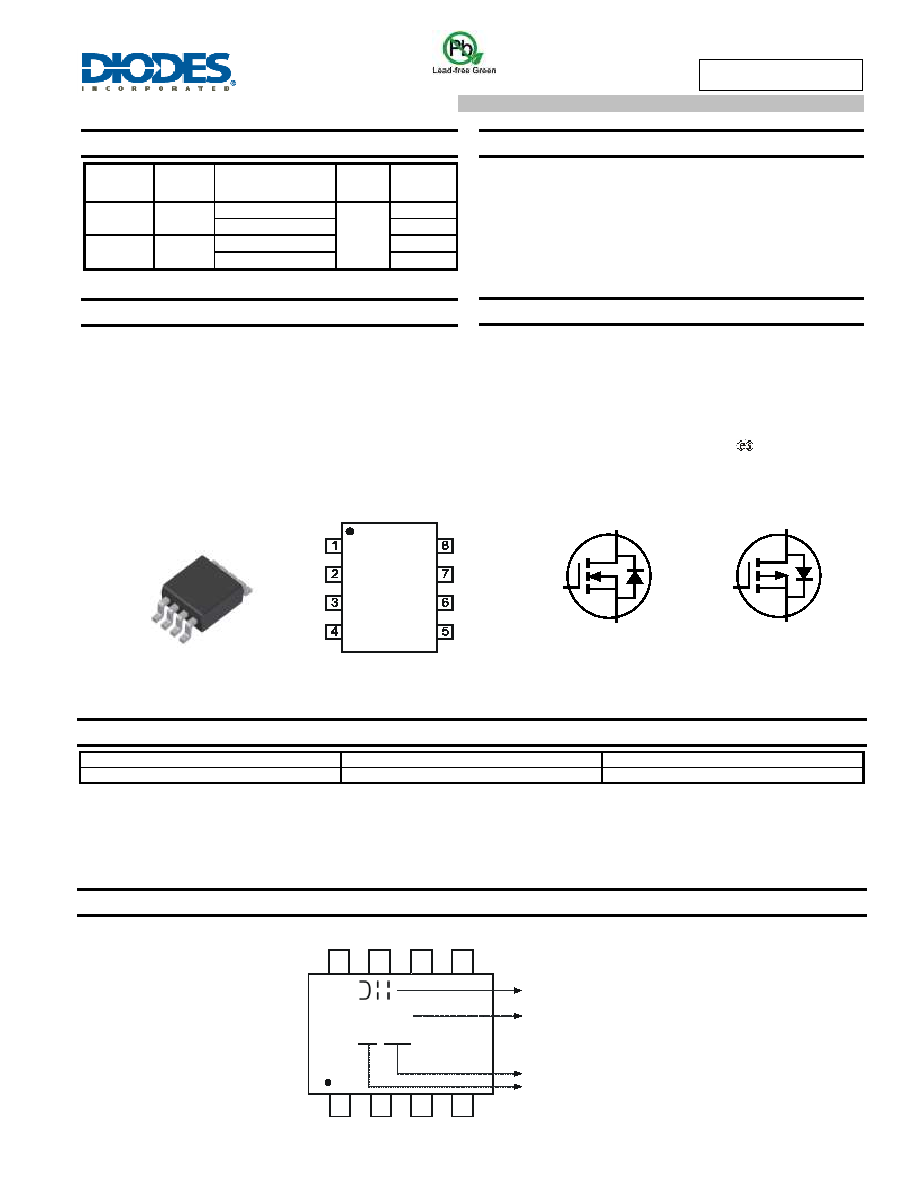

DMC3025LSDQ

30V COMPLEMENTARY ENHANCEMENT MODE MOSFET

Product Summary

Device

Package

N-Channel

30V

20m

SO-8

8.5A

32m

7.0A

P-Channel

-30V

45m

-5.5A

85m

-4.1A

Description and Applications

This MOSFET is designed to meet the stringent requirements of

Automotive applications. It is qualified to AEC-Q101, supported by a

PPAP and is ideal for use in:



DC Motor Control



DC-AC Inverters

Features



Low On-Resistance



Low Input Capacitance



Fast Switching Speed



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)



Qualified to AEC-Q101 Standards for High Reliability



PPAP Capable (Note 4)

Mechanical Data



Case: SO-8



Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0



Moisture Sensitivity: Level 1 per J-STD-020



Terminal Connections Indicator: See Diagram



Terminals: Finish

– Matte Tin Annealed Over Copper Leadframe.

Solderable per MIL-STD-202, Method 208



Weight: 0.008 grams (Approximate)

Part Number

Case

Packaging

DMC3025LSDQ-13

SO-8

2,500/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html

for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-

free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Pin Configuration

S2

D1

D2

G1

D2

D1

G2

S1

Top View

SO-8

Equivalent Circuit

Q2 N-CHANNEL MOSFET

Q1 P-CHANNEL MOSFET

D2

S2

G2

D1

S1

G1

Top View

Logo

Part no.

Year: “17” = 2017

1

4

8

5

C3025LD

YY WW

Xth week: 01 ~ 53
