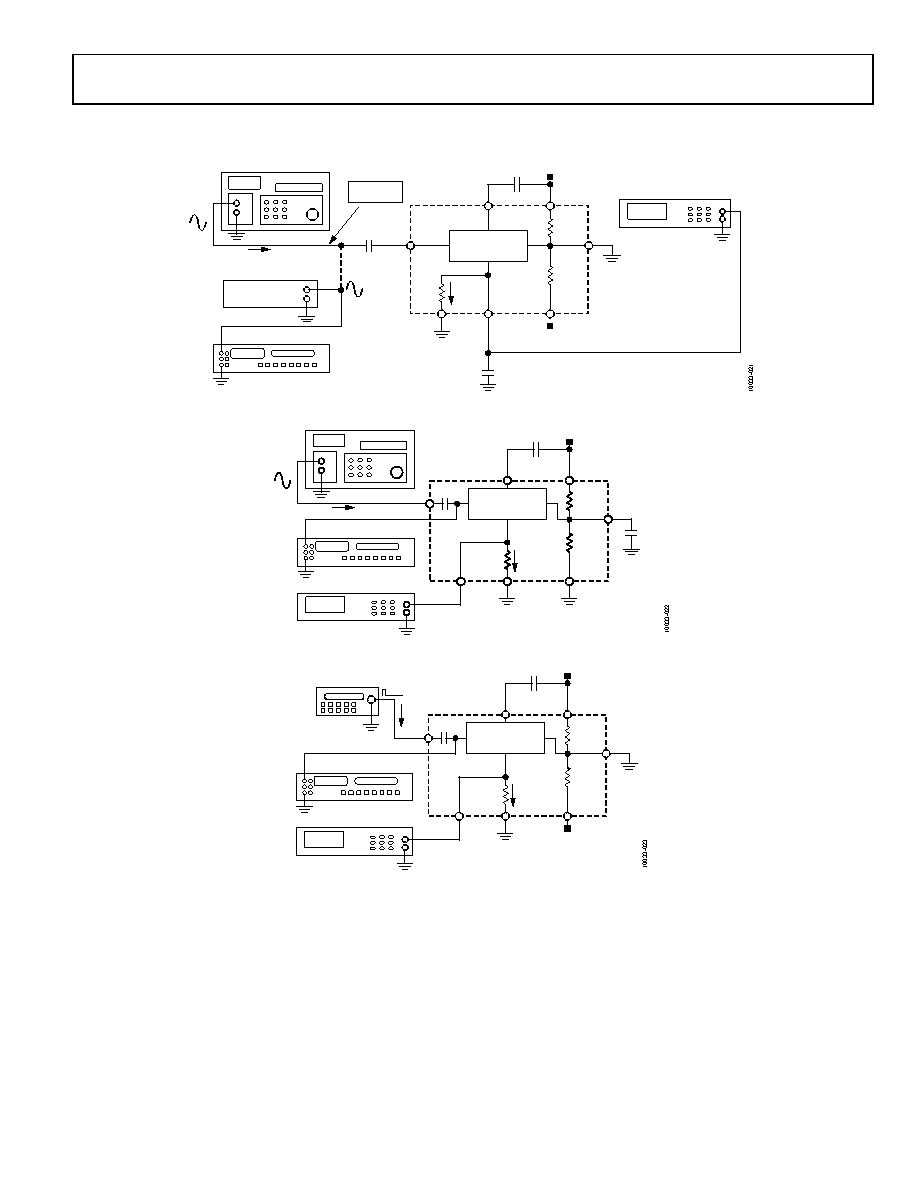

9 / 21 page  Data Sheet AD8436 Rev. E | Page 9 of 21 TEST CIRCUITS CALIBRATOR (50Hz<f<500kHz) FUNCTION GENERATOR (f>500kHz) OUT RMS +5V 10µF PRECISION DMM PRECISION DMM 22µF VEE CAV VCC 100kΩ 100kΩ 16kΩ OGND –5V IGND RMS CORE 10µF ATTENUATOR eIN = 100µV, 300µV Figure 21. Core Response Test Circuit Using Dual Supplies PRECISION DMM SIGNAL SOURCE OUT RMS 4.80V 10µF AC-IN MONITOR PRECISION DMM 4.7µF 4.7µF VEE CAV VCC 100kΩ 100kΩ 16kΩ OGND IGND RMS CORE Figure 22. Core Response Test Circuit Using a Single Supply FUNCTION GENERATOR PRECISION DMM OUT RMS +5V 10µF AC-IN MONITOR PRECISION DMM 4.7µF VEE CAV VCC 100kΩ 100kΩ 16kΩ OGND –5V IGND RMS CORE Figure 23. Crest Factor Test Circuit |
|
|
