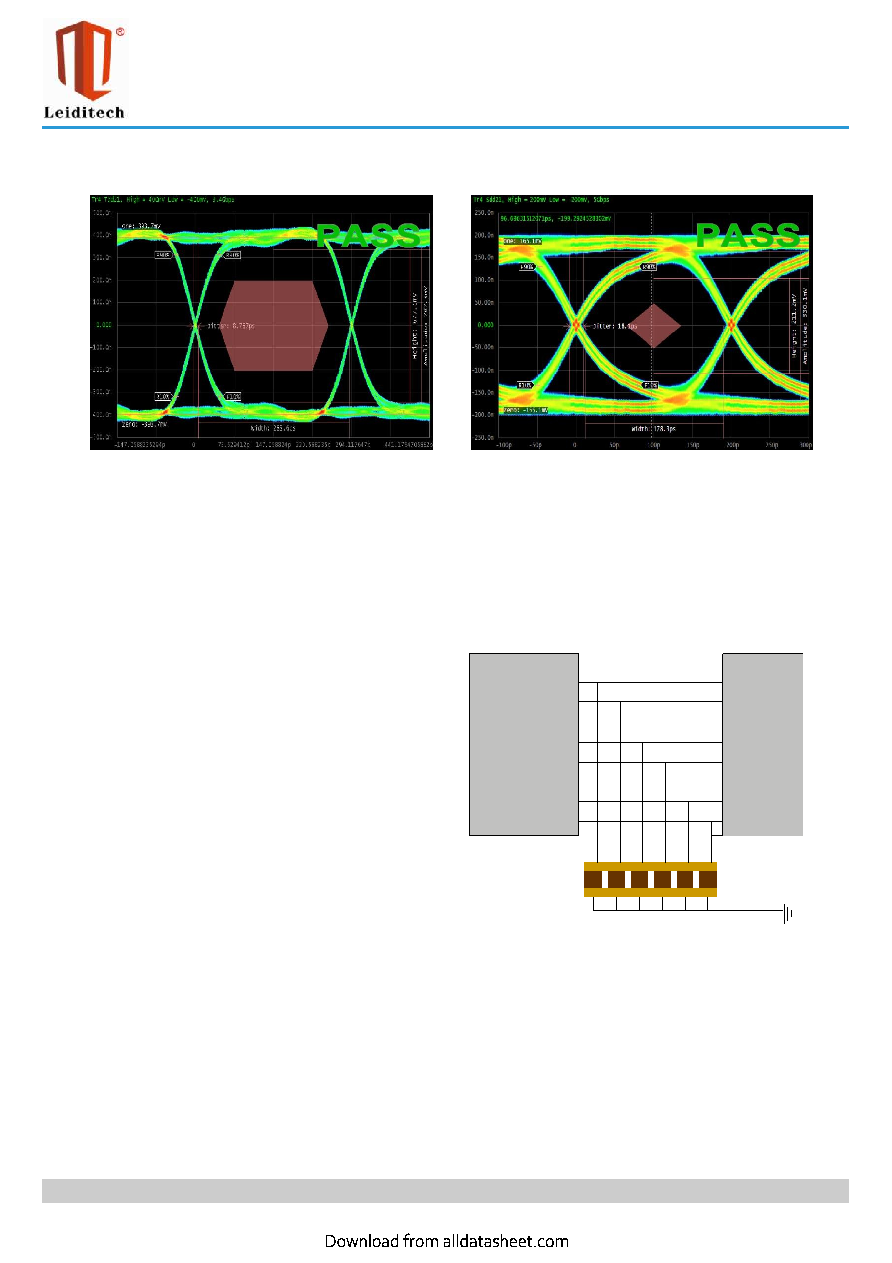

3 / 7 page  11 Eye Diagram Measurement HDMI Mask at 3.4 Gbps USB3.0 Mask at 5.0 Gbps 12 ESD Protection for Signal Line The PESD is designed for the protection of one bidirectional data line from ESD damage. Place the PESD as close to the input terminal or connector as possible. Minimize the path length between the PESD and the protected signal line. Use ground planes whenever possible. Signal line to be protected USB Port USB 3.0 Host/Controller Vbus D- D+ GND RX- RX+ GND TX- TX+ PESD1663U005 Rev : www.leiditech.com 01.06.2015 3/7 |
|
|
