Data Sheet
ADL8201
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 7 of 13

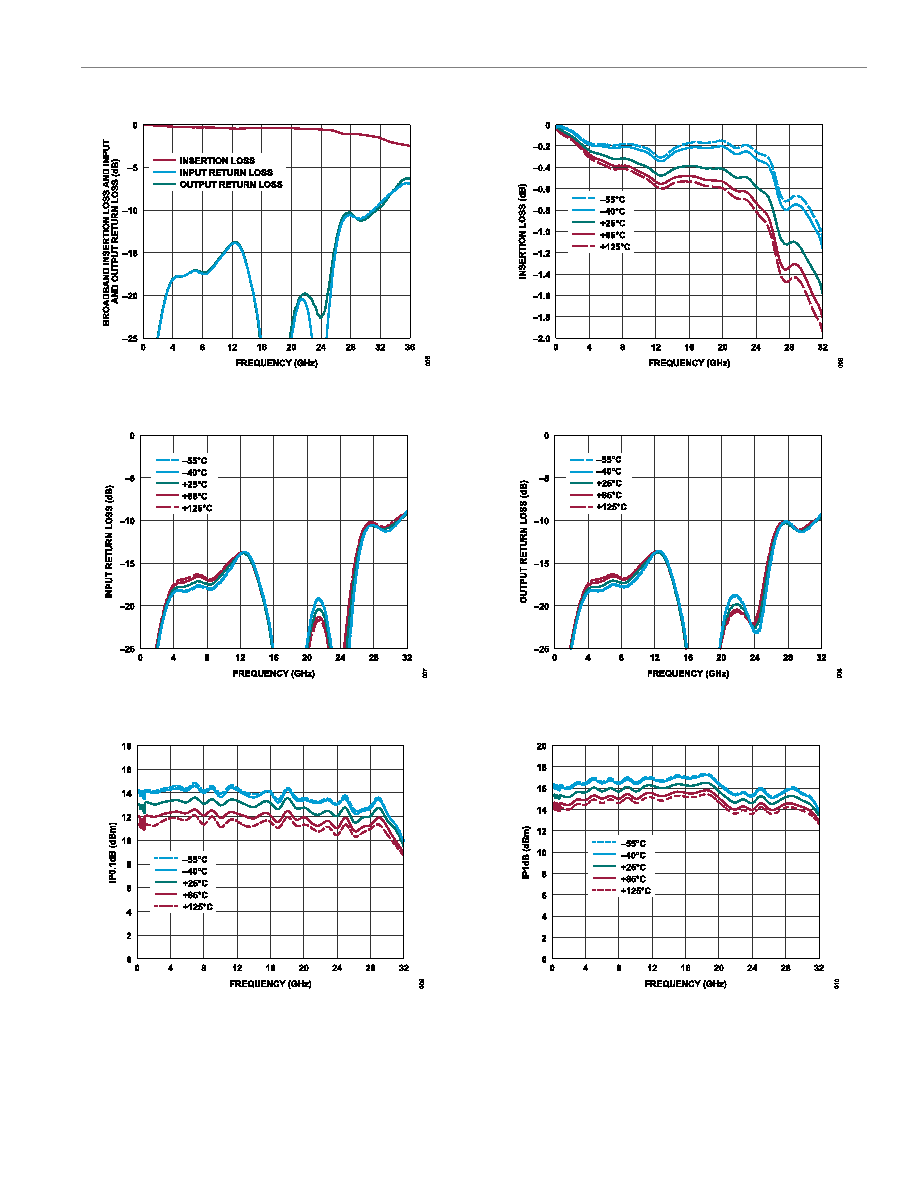

Figure 5. Broadband Insertion Loss and Input and Output Return Loss vs.
Frequency
Figure 6. Input Return Loss vs. Frequency for
Various Temperatures
Figure 7. Input Power for 0.1dB Compression (IP0.1dB) vs. Frequency for
Various Temperatures
Figure 8. Insertion Loss vs. Frequency for
Various Temperatures
Figure 9. Output Return Loss vs. Frequency for
Various Temperatures
Figure 10. IP1dB vs. Frequency for
Various Temperatures
