H8SX1663 Datasheet(PDF) 426 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX1663 Datasheet(HTML) 426 Page - Renesas Technology Corp |
|
|

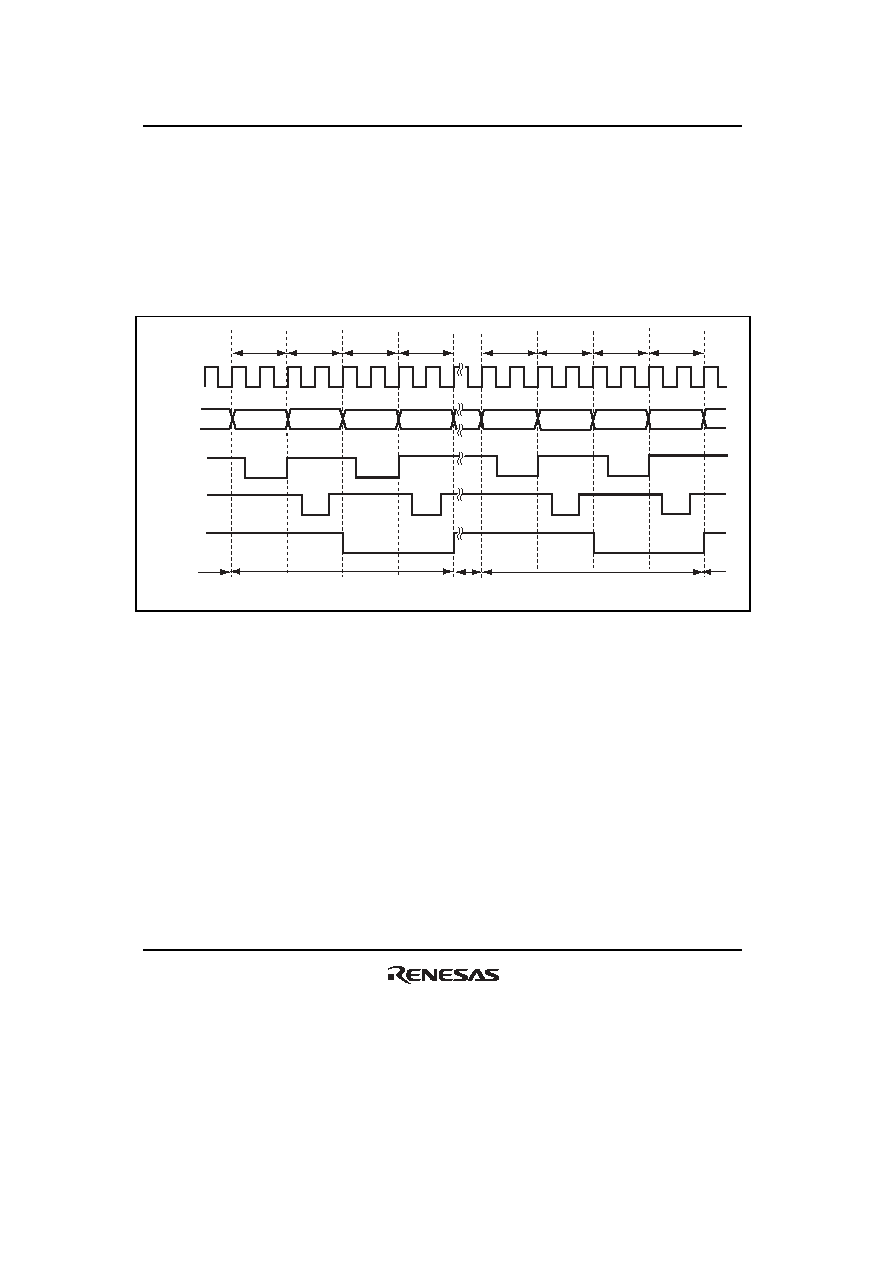

426 / 1158 page  Section 7 DMA Controller (DMAC) Rev.1.00 Jun. 07, 2006 Page 374 of 1102 REJ09B0294-0100 (3) Block Transfer Mode In block transfer mode, the bus is released every time a 1-block size of transfers at a single transfer request is completed. In figure 7.28, the TEND signal output is enabled and data is transferred in words from the external 16-bit 2-state access space to the external 16-bit 2-state access space in block transfer mode. DMA read cycle DMA read cycle DMA write cycle Address bus DMA write cycle DMA read cycle DMA read cycle DMA write cycle DMA write cycle B φ RD LHWR, LLWR TEND Bus released Bus released Bus released Last block transfer cycle Block transfer Figure 7.28 Example of Transfer in Block Transfer Mode |
|
