IS25LP256-RMLA Datasheet(PDF) 13 Page - Integrated Silicon Solution, Inc

Part # IS25LP256-RMLA
Description  3V SERIAL FLASH MEMORY WITH 166MHZ MULTI I/O SPI
PDF  15 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ISSI [Integrated Silicon Solution, Inc]
Direct Link  http://www.issi.com
Logo ISSI - Integrated Silicon Solution, Inc

IS25LP256-RMLA Datasheet(HTML) 13 Page - Integrated Silicon Solution, Inc

Back Button IS25LP256-RMLA Datasheet HTML 7Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 8Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 9Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 10Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 11Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 12Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 13Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 14Page - Integrated Silicon Solution, Inc IS25LP256-RMLA Datasheet HTML 15Page - Integrated Silicon Solution, Inc
Zoom Inzoom in Zoom Outzoom out
 13 / 15 page
background image
IS25LP256
Integrated Silicon Solution, Inc.- www.issi.com
13
Rev.00A
1/16/2014

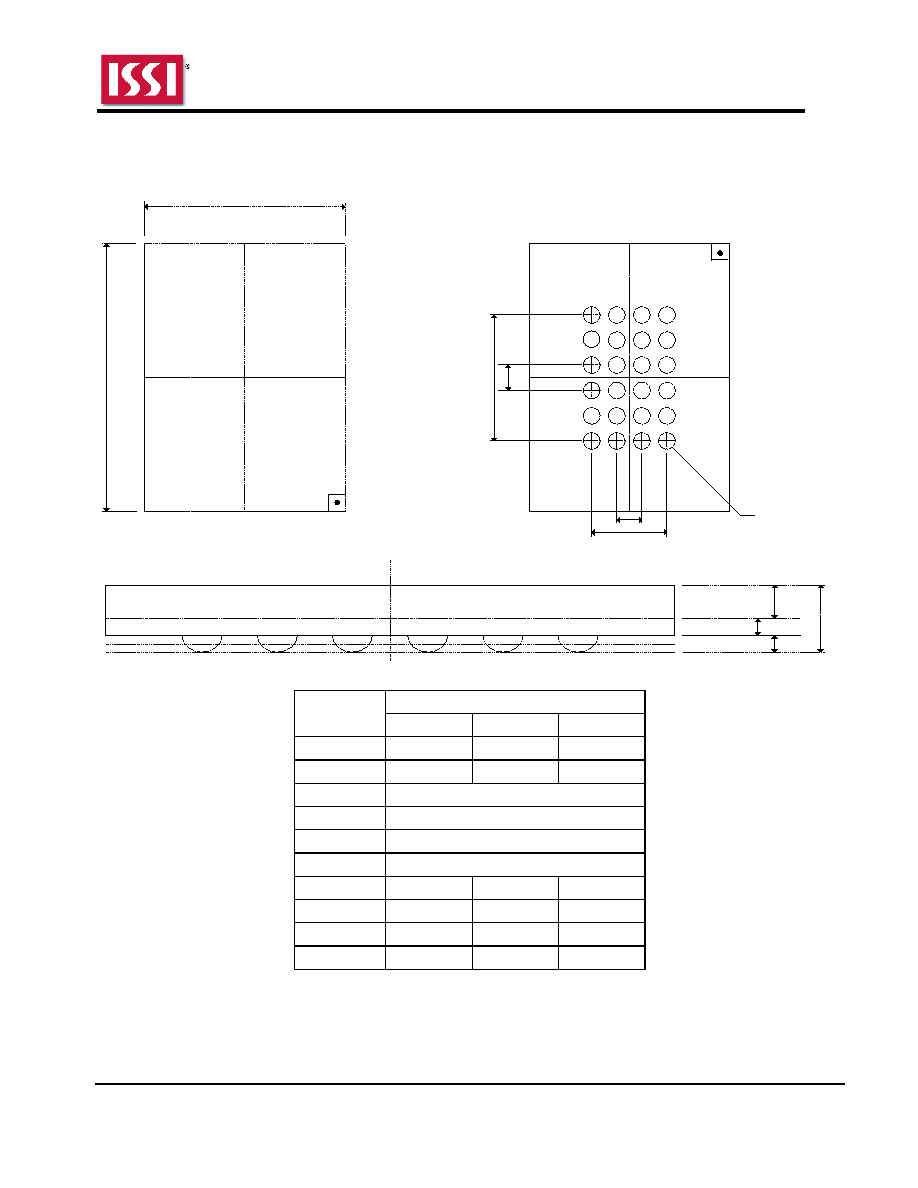

24-BALL THIN PROFILE FINE PITCH BGA 6X8MM 4X6 BALL ARRAY (JG)
D
E
4
3
2
1
A
B
C
D
E
F
E1
e
D1
A
A3
A2
A1
e
nX Øb
SYMBOL
DIMENSIONS (MM)
MIN
NOM
MAX
A
-
-
1.20
A1
0.27
-
0.37
A2
0.21 REF
A3
0.54 REF
D
6 BSC
E
8 BSC
D1
-
3.00
-
E1
-
5.00
-
e
-
1.00
-
b
-
0.40
-
Note: All dimensions are in millimeters.
(TOP VIEW)
(BOTTOM VIEW)
A1 Corner
Index Area
A1 Corner
Index Area
ADVANCED INFORMATION
