ADL8106ACEZ-R7 Datasheet(PDF) 10 Page - Analog Devices

Part # ADL8106ACEZ-R7
Description  GaAs, pHEMT, Low Noise Amplifier, 18 GHz to 54 GHz
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADL8106ACEZ-R7 Datasheet(HTML) 10 Page - Analog Devices

Back Button ADL8106ACEZ-R7 Datasheet HTML 6Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 7Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 8Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 9Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 10Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 11Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 12Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 13Page - Analog Devices ADL8106ACEZ-R7 Datasheet HTML 14Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 10 / 26 page
background image
Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 10 of 26

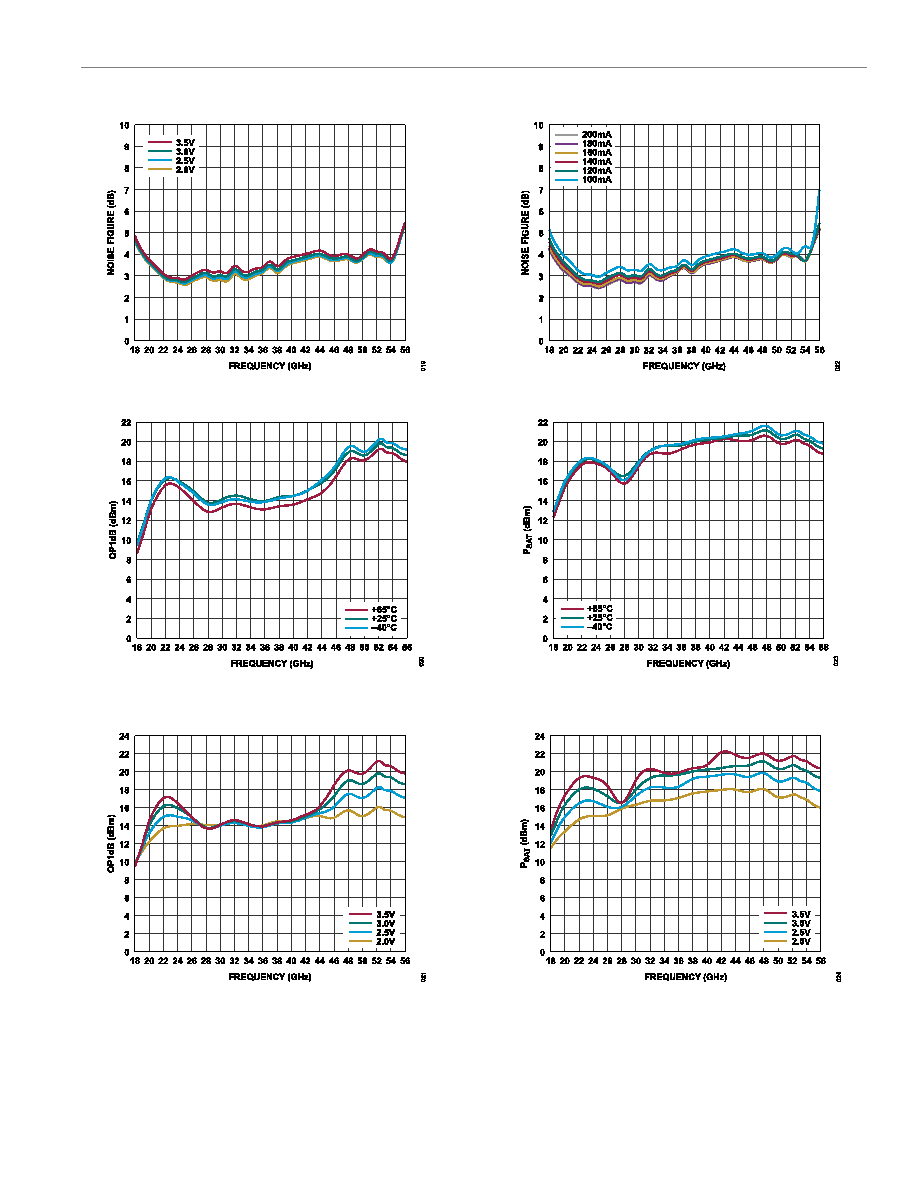

Figure 19. Noise Figure vs. Frequency for Various VDD Values, IDQ = 120 mA
Figure 20. OP1dB vs. Frequency for Various Temperatures,
VDD = 3 V, IDQ = 120 mA
Figure 21. OP1dB vs. Frequency for Various VDD Values, IDQ = 120 mA
Figure 22. Noise Figure vs. Frequency for Various IDQ Values, VDD = 3 V
Figure 23. PSAT vs. Frequency for Various Temperatures,
VDD = 3 V, IDQ = 120 mA
Figure 24. PSAT vs. Frequency for Various VDD Values, IDQ = 120 mA
