H8SX1663 Datasheet(PDF) 471 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX1663 Datasheet(HTML) 471 Page - Renesas Technology Corp |
|
|

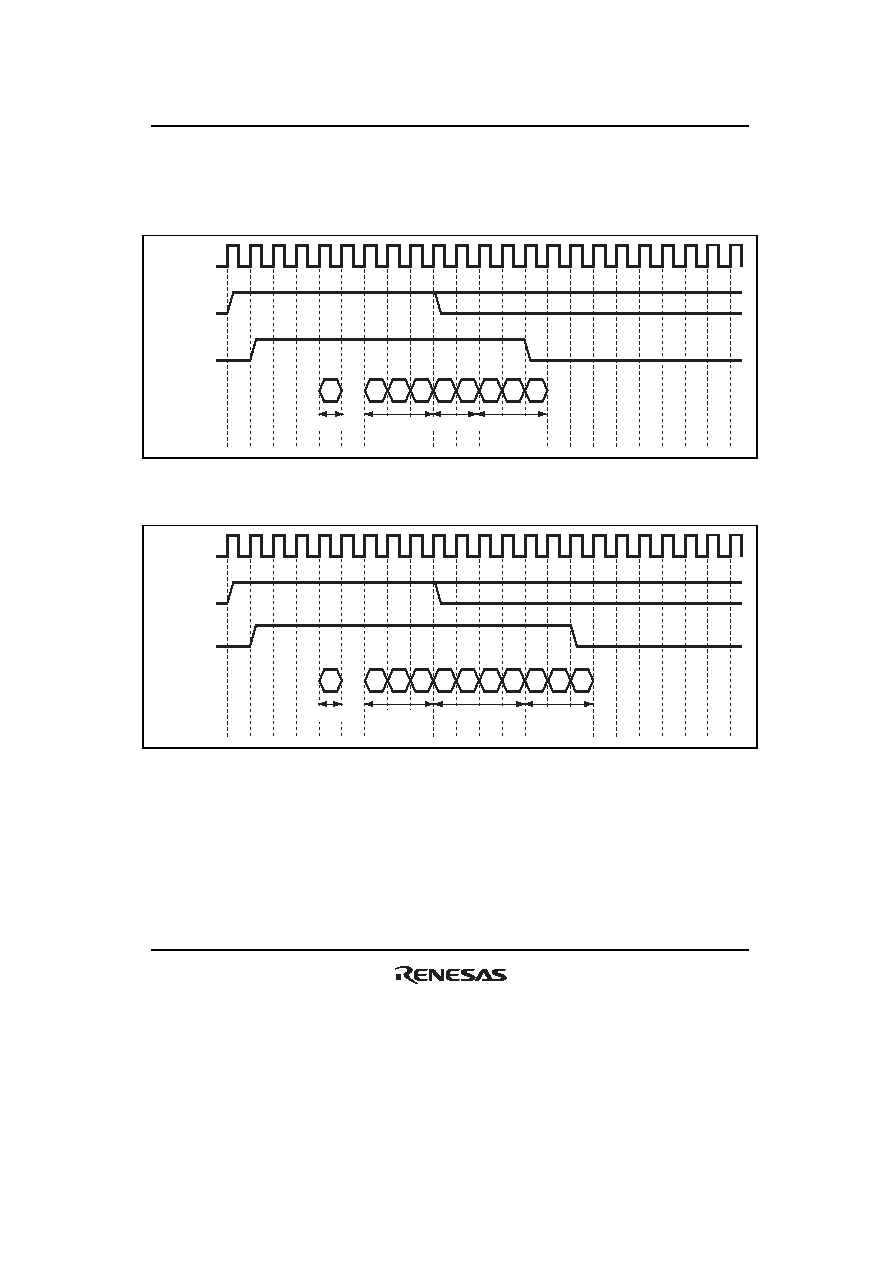

471 / 1158 page  Section 8 Data Transfer Controller (DTC) Rev.1.00 Jun. 07, 2006 Page 419 of 1102 REJ09B0294-0100 8.5.8 Operation Timing Figures 8.11 to 8.14 show the DTC operation timings. Clock Address DTC activation request DTC request R W Vector read Transfer information read Data transfer Transfer information write Figure 8.11 DTC Operation Timing (Example of Short Address Mode in Normal Transfer Mode or Repeat Transfer Mode) Clock Address DTC activation request DTC request RW R W Vector read Transfer information read Data transfer Transfer information write Figure 8.12 DTC Operation Timing (Example of Short Address Mode in Block Transfer Mode with Block Size of 2) |
|
