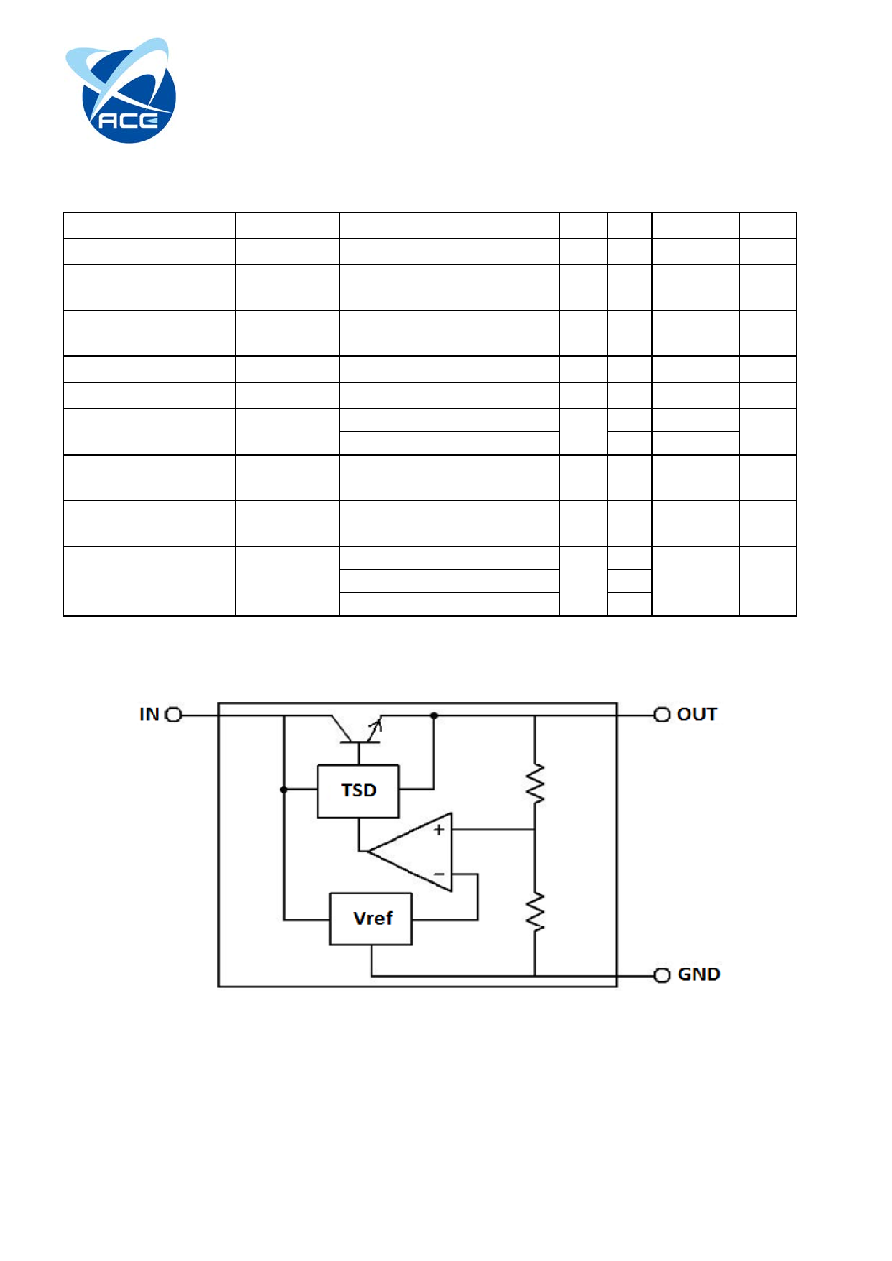

ACE522
36V Input Linear Regulator
VER 1.1
4
Electrical Characteristics
(Test Conditions：Cin=0.33uF, Cout=0.1uF,TA=25℃, Unless otherwise specified)
Parameter
Symbol
Conditions
Min
Typ
Max
Units
Input Voltage
VIN
36
V
Output Voltage
VOUT
1mA≤Iout≤40mA
7V≤Vin≤30V
4.85
5.0
5.15
V
Maximum Output
Current
IOUT(Max.)
Vin-Vout=1.5V
150
mA
Line Regulation
ΔV
OUT
7V≤Vin≤30V
0.2
0.3
mV
Load Regulation
ΔV
OUT
1mA≤Iout≤100mA
20
40
mV
Quiescent Current
Iq
VIN-Vout=1.25V
0.1
0.15
uA
ADJ version
10
20
Temperature
coefficient
Δ
V/ΔT
Vin=6.5V,
25℃
≤ Temp ≤85℃
±100
ppm
Over Temperature
Procetion
TSD
Vin=6.5V, Iout=1mA
150
℃
Thermal Resistor
θJC
SOT89-3
20
℃/W
TO-92
10
TO-220
4.5
Block Diagram
