Document No. : SSC-QP-7-07-24 (Rev.00)
1. Dome Type
Notes :
1. All dimensions are in millimeters. (tolerance : ±0.2 )
2. Scale : none
3. Slug of package is connected to anode.
*The appearance and specifications of the product may be changed for improvement without
notice.
Body
Lead
Cathode Mark
Lens
SLUG

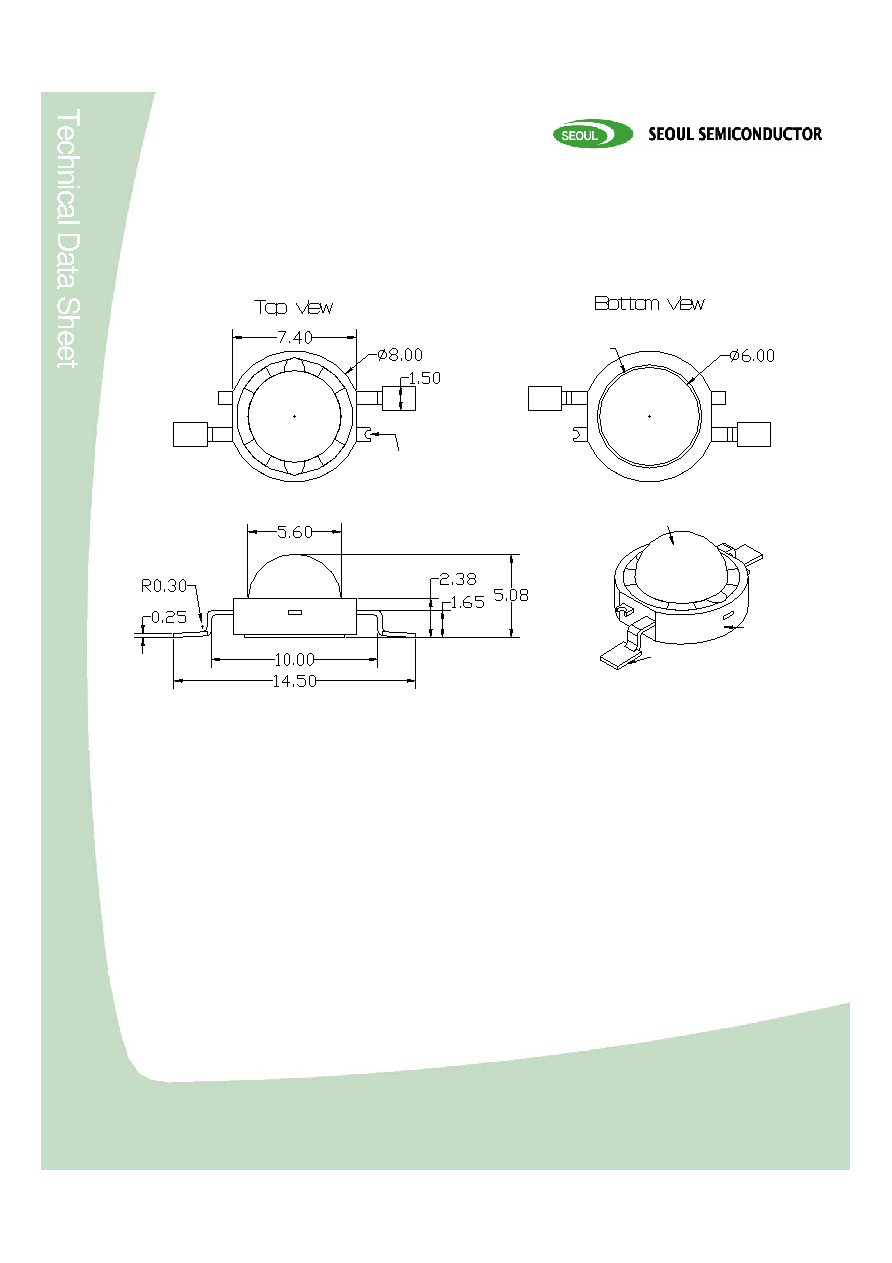

Outline Dimension
