ADRF6720

Data Sheet

OUTLINE DIMENSIONS

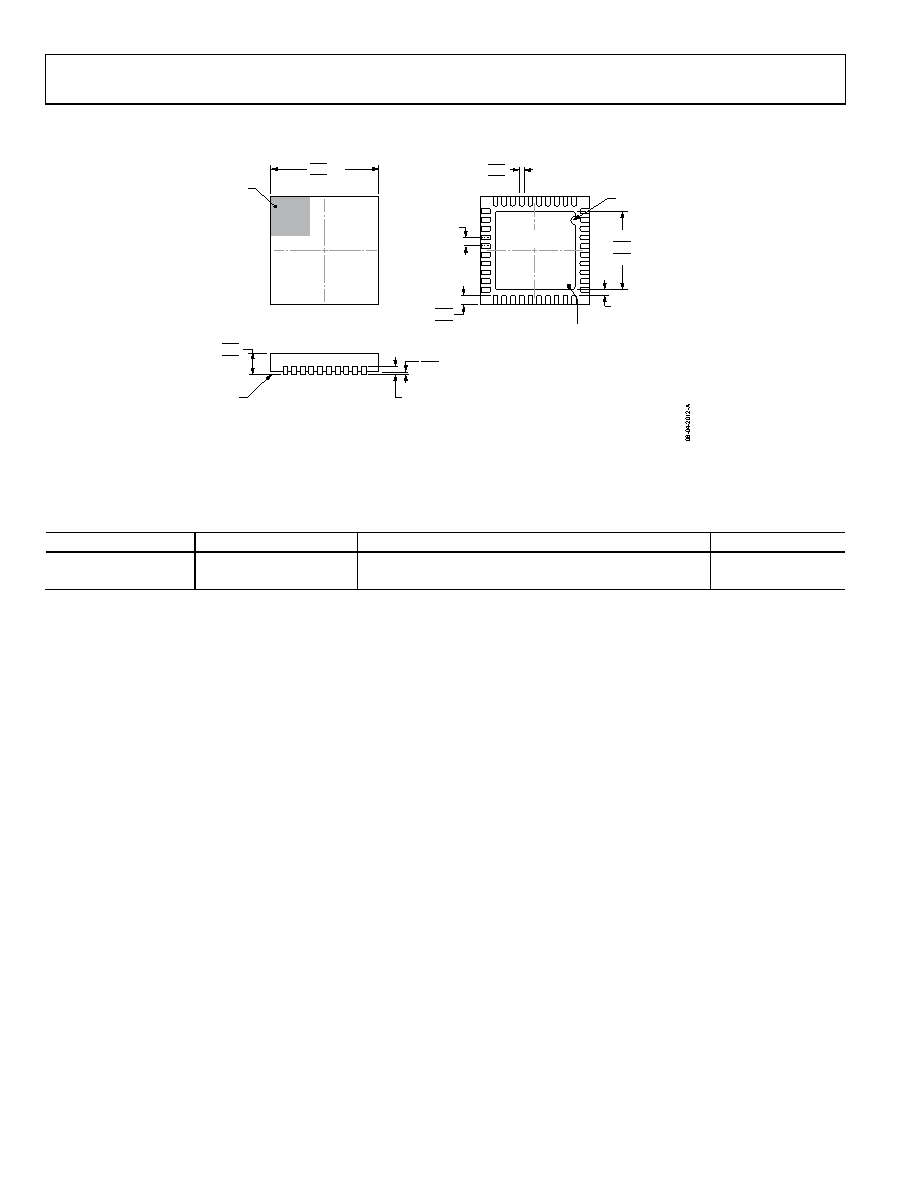

Figure 60. 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

6 mm × 6 mm Body, Very Very Thin Quad

(CP-40-11)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF6720ACPZ-R7

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-40-11

ADRF6720-EVALZ

Evaluation Board

Z = RoHS Compliant Part.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

6.10

6.00 SQ

5.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.45

0.40

0.35

0.25 MIN

4.55

4.40 SQ

4.25

COMPLIANT TO JEDEC STANDARDS MO-220-WJJD.

Rev. 0 | Page 42 of 44
