Data Sheet

ADRF5515A

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 10 of 15

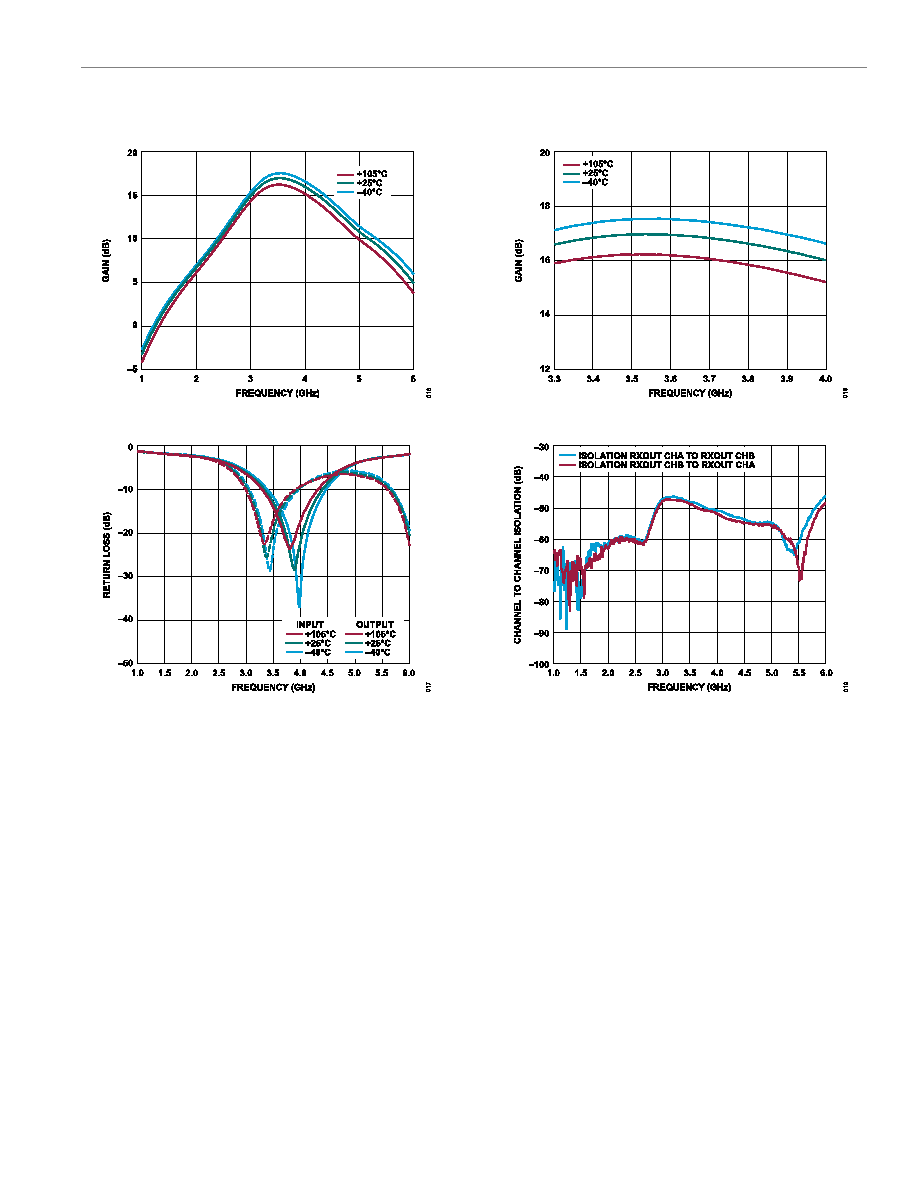

RECEIVE OPERATION, LOW GAIN MODE

Figure 16. Gain vs. Frequency at Various Temperatures

Figure 17. Return Loss vs. Frequency

Figure 18. Gain vs. Frequency at Various Temperatures, 3.3 GHz to 4.0 GHz

Figure 19. Channel to Channel Isolation vs. Frequency
