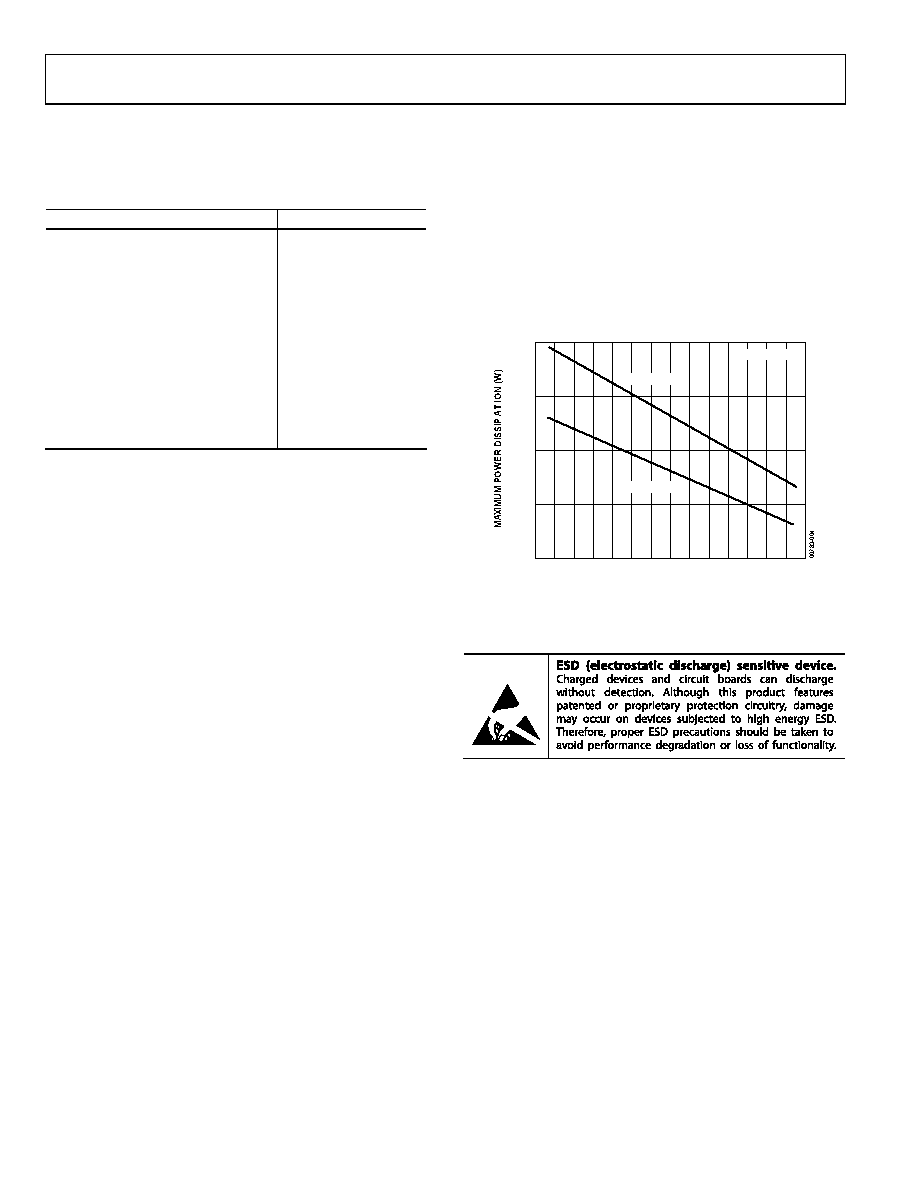

AD629
Rev. B | Page 4 of 16
ABSOLUTE MAXIMUM RATINGS
Table 2.
Parameter
Rating
Supply Voltage, VS
±18 V
Internal Power Dissipation1
8-Lead PDIP (N)
See Figure 4
8-Lead SOIC (R)
See Figure 4
Input Voltage Range, Continuous
±300 V
Common-Mode and Differential, 10 sec
±500 V
Output Short-Circuit Duration
Indefinite
Pin 1 and Pin 5
–VS − 0.3 V to +VS + 0.3 V
Maximum Junction Temperature
150°C
Operating Temperature Range
−55°C to +125°C
Storage Temperature Range
−65°C to +150°C
Lead Temperature (Soldering 60 sec)
300°C
1 Specification is for device in free air:
8-Lead PDIP, θJA = 100°C/W;
8-Lead SOIC, θJA = 155°C/W.
Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.
AMBIENT TEMPERATURE (°C)
2.0
1.5
1.0
0.5
0
–50 –40 –30 –20 –10 0
10 20 30 40 50 60 70 80 90
8-LEAD SOIC
TJ = 150°C
8-LEAD PDIP
Figure 4. Maximum Power Dissipation vs. Temperature for SOIC and PDIP
