Data Sheet

ADRF5062

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 8 of 11

INPUT POWER COMPRESSION, RF IMBALANCE, AND GROUP DELAY

VDD = 3.3 V, VSS = −3.3 V, VCTL = 0 V or 3.3 V, TCASE = 25°C, and a 100 Ω differential system, unless otherwise noted. RF1 refers to the RF1P

and RF1N differential pair, and RF2 refers to the RF2P and RF2N differential pair.

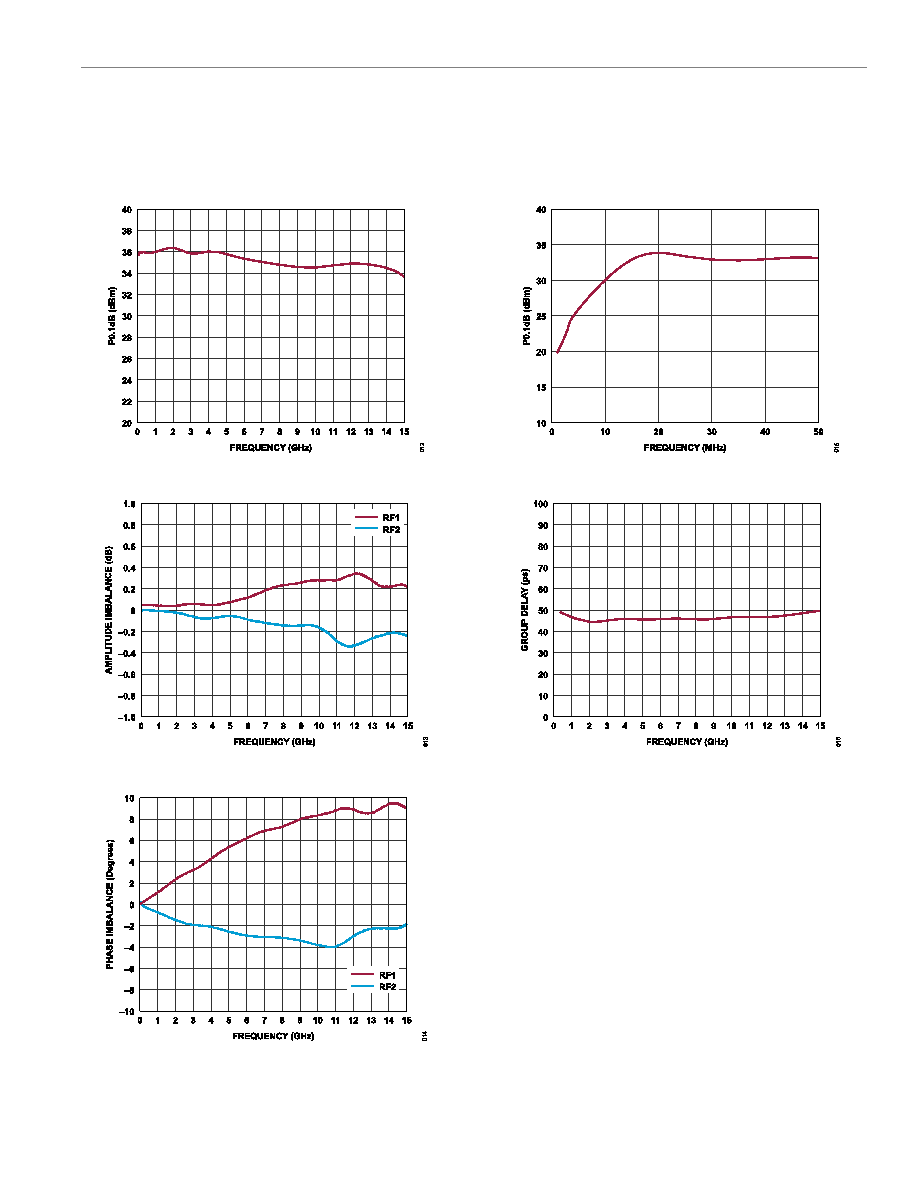

Figure 12. P0.1 dB vs. Frequency

Figure 13. Amplitude Imbalance vs. Frequency, RF1 and RF2

Figure 14. Phase Imbalance vs. Frequency, RF1 and RF2

Figure 15. P0.1 dB vs. Frequency, Low-Frequency Detail

Figure 16. Group Delay vs. Frequency
