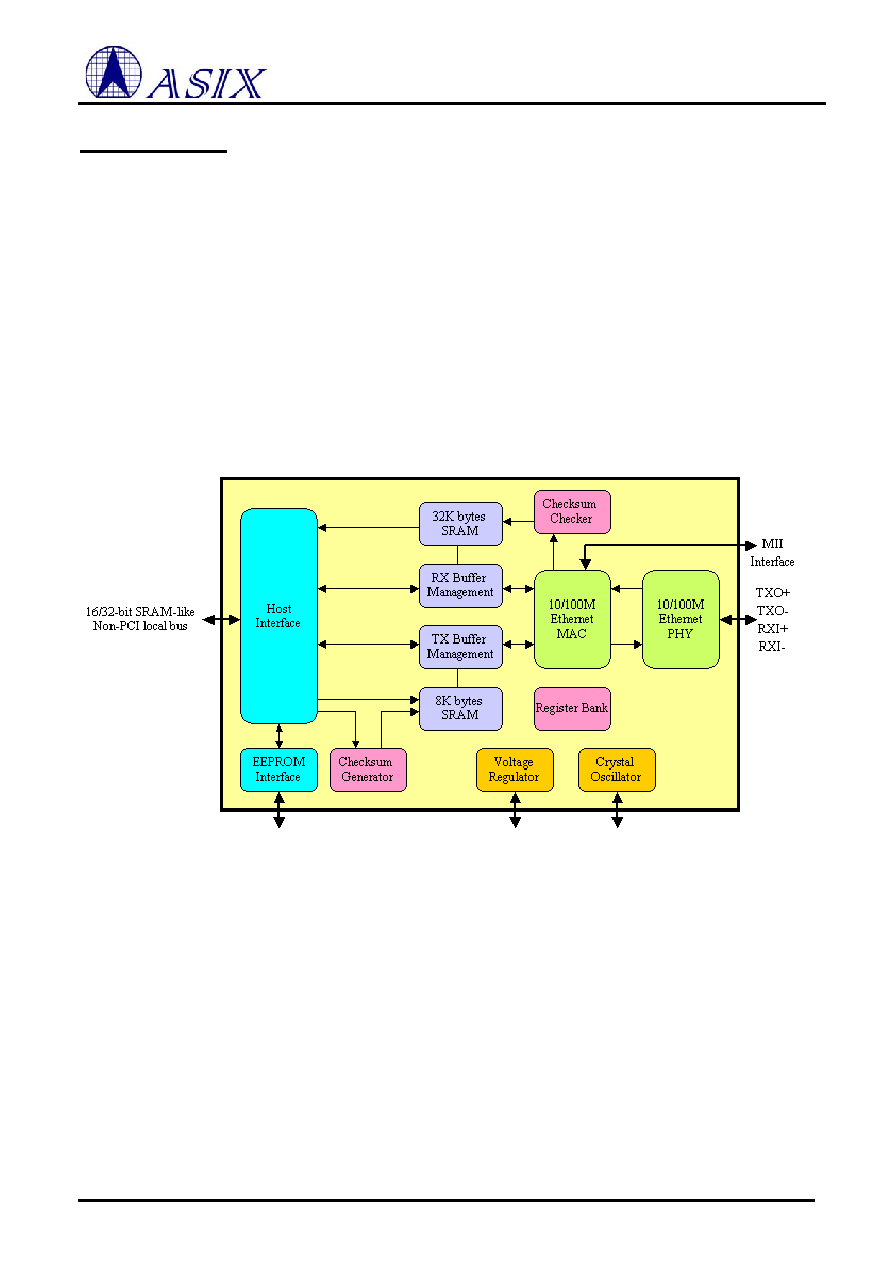

7 / 55 page ![]() AX88780 7 ASIX ELECTRONICS CORPORATION 1.0 Introduction 1.1 General Description AX88780 supports full-duplex or half-duplex operation at 10/100 Mbps speed with auto-negotiation or manual setting. The AX88780 has two built-in synchronous SRAMs for buffering packet. The one is 32K bytes for receiving packets from Ethernet; the other is 8K-bytes for transmitting packets from host system to Ethernet. The AX88780 also has 256 bytes built-in configuration registers. For software programming, the total address space used in AX88780 is 64K bytes in 32-bit mode and at least (8K + 8) bytes in 16-bit mode. Because AX88780 is a SRAM-like device, AX88780 could be treated as a SRAM device and be attached to SRAM controller of system. Therefore, system can execute DMA cycles to gain the highest performance. AX88780 needs 2 clock sources, one is HCLK and another one is XTLP. The HCLK clock can be from the host system clock or from a stand-along OSC, and the XTLP/XTLN clock is 25Mhz for internal PHY. 1.2 AX88780 Block Diagram Figure 1: AX88780 block diagram |
|
