20 ABB general purpose drives ACS310 | Catalog

A separate order line and type designation is required for

any of these external options.

FlashDrop tool

FlashDrop is a powerful palm sized tool for fast and easy

parameter selecting and setting. It gives the possibility to

hide selected parameters to protect the machine. Only the

parameters needed in the application are shown. The tool can

copy parameters between two drives or between a PC and a

drive. All the above can be done without a power connection to

the drive – in fact, it is not even necessary to unpack the drive.

DrivePM

DrivePM (Drive parameter manager) is a tool to create, edit

and copy parameter sets for FlashDrop. For each parameter/

group the user has a possibility to hide it, which means

that the drive user does not see the parameter/group at all.

DrivePM version 1.2 is compatible with ACS310 drives.

DrivePM requirements

− Windows 2000/XP/Vista/Windows 7

− Serial port from a PC

Options

External

FlashDrop package includes

− FlashDrop tool

− DrivePM software on a CD-rom

− User’s manual in English and in pdf-format on the CD-rom

− Cable OPCA-02 for connection between the PC and

FlashDrop tool

− Battery charger

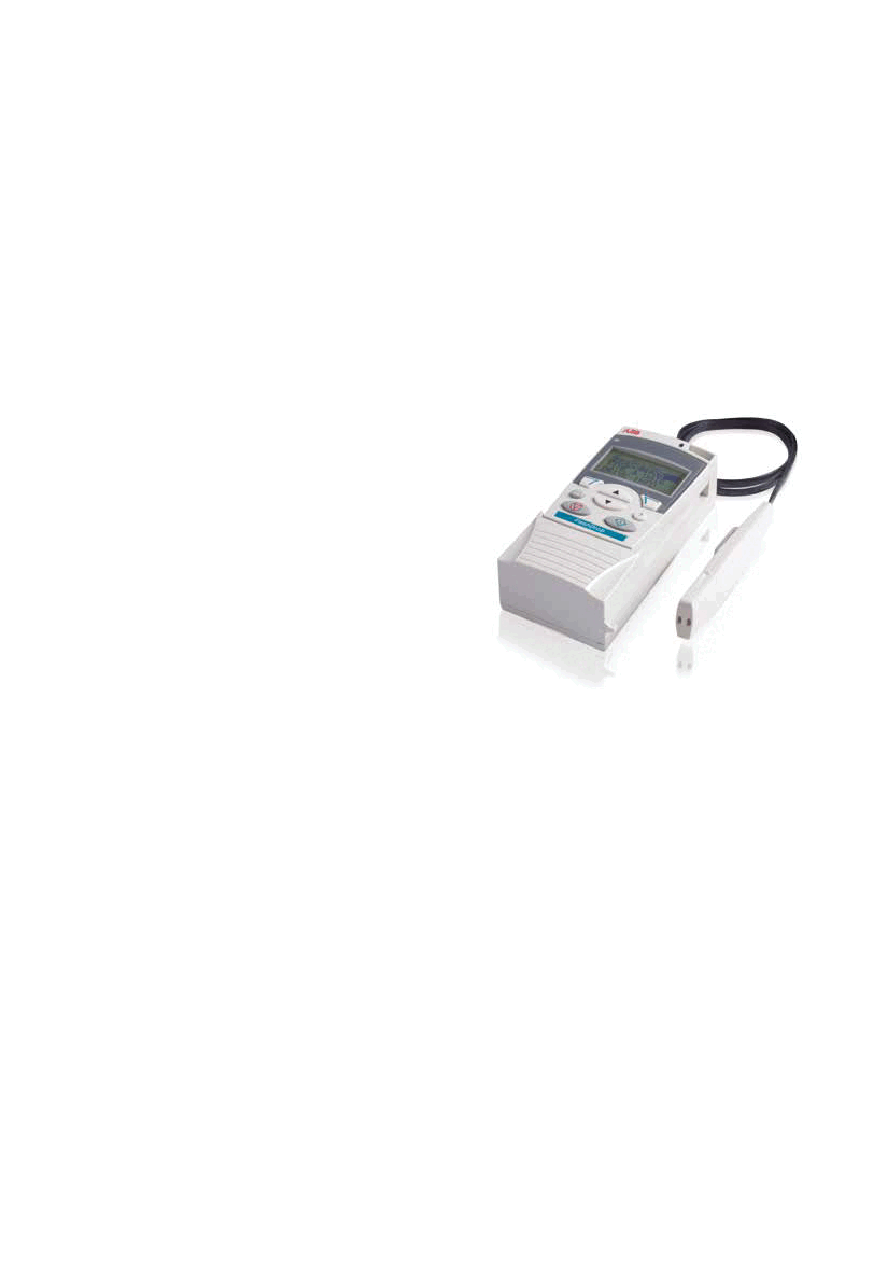

FlashDrop tool
