NJG1104KB2
- 7 -

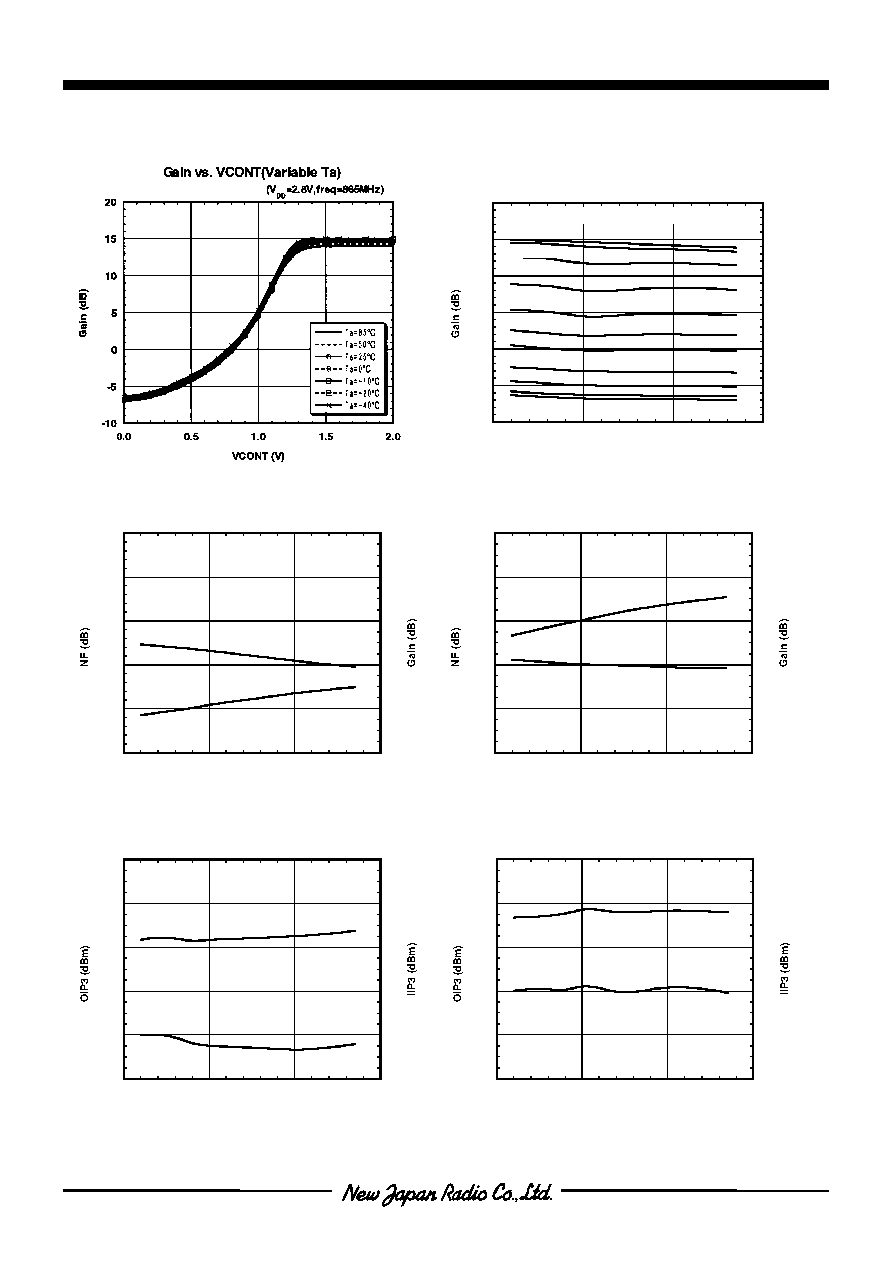

nTYPICAL CHARACTERISTICS
-10
-5
0
5
10
15
20
-50
0
50
100
Gain vs. Ta (Variable VCONT)
Ta (
o
C)
VCONT=1.4V
VCONT=1.2V
VCONT=1.1V
VCONT=1.0V
VCONT=0.9V
VCONT=0.8V
VCONT=0.6V
VCONT=0.4V
VCONT=0.2V
VCONT=1.3V
Delta Gain(max)=1.3dB@Ta=-40to80
oC,VCONT=1.3V
VCONT=0V
(V
DD
=2.8V,freq=865MHz)
10
12
14
16
18
20
-10
-8
-6
-4
-2
0
-50
0
50
100
NF,Gain vs. Ta
Ta (
o
C)
Gain
NF
(V
DD
=2.8V,V
CONT
=0.2V,freq=865MHz)
0
1
2
3
4
5
10
12
14
16
18
20
-50
0
50
100
NF,Gain vs. Ta
Ta (
oC)
(V
DD
=2.8V,V
CONT
=1.7V,freq=865MHz)
Gain
NF
20
22
24
26
28
30
0
2
4
6
8
10
-50
0
50
100
OIP3,IIP3 vs. Ta
Ta (
oC)
(V
DD
=2.8V,V
CONT
=1.7V,freq=865+865.1MHz,Pin=-30dBm)
IIP3
OIP3
16
18
20
22
24
26
18
20
22
24
26
28
-50
0
50
100
OIP3,IIP3 vs. Ta
Ta (
o
C)
IIP3
OIP3
(V
DD
=2.8V,V
CONT
=0.2V,freq=865+865.1MHz,Pin=-10dBm)
