Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 20 of 34

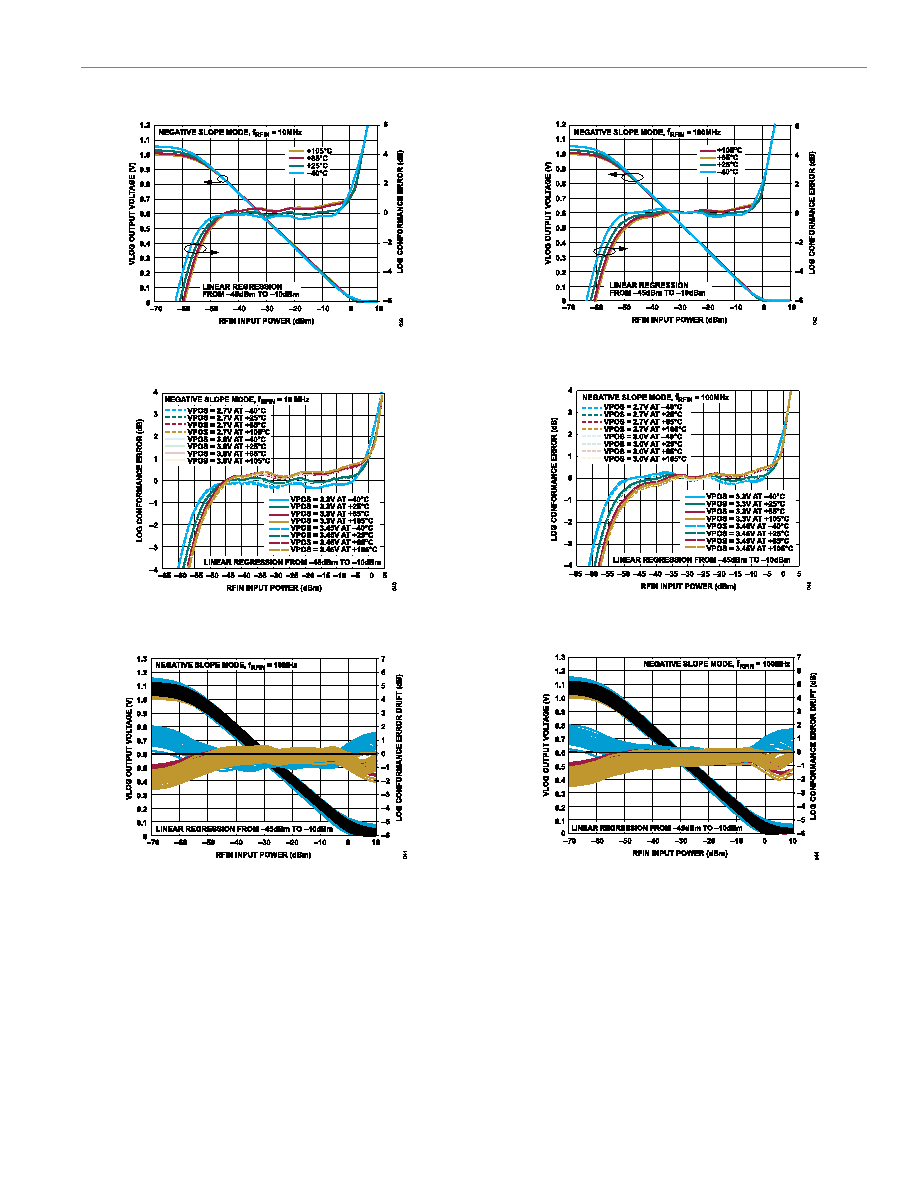

Figure 39. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
10 MHz, Negative Slope Mode
Figure 40. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
10 MHz, Negative Slope Mode
Figure 41. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 10 MHz, Negative Slope Mode
Figure 42. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
100 MHz, Negative Slope Mode
Figure 43. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
100 MHz, Negative Slope Mode
Figure 44. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 100 MHz, Negative Slope Mode
