ADBMS1818ASWZ-R7 Datasheet(PDF) 21 Page - Analog Devices

Part # ADBMS1818ASWZ-R7
Description  18-Cell Battery Monitor with Daisy Chain Interface
PDF  92 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADBMS1818ASWZ-R7 Datasheet(HTML) 21 Page - Analog Devices

Back Button ADBMS1818ASWZ-R7 Datasheet HTML 17Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 18Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 19Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 20Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 21Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 22Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 23Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 24Page - Analog Devices ADBMS1818ASWZ-R7 Datasheet HTML 25Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 92 page
background image
Data Sheet
ADBMS1818
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 21 of 92

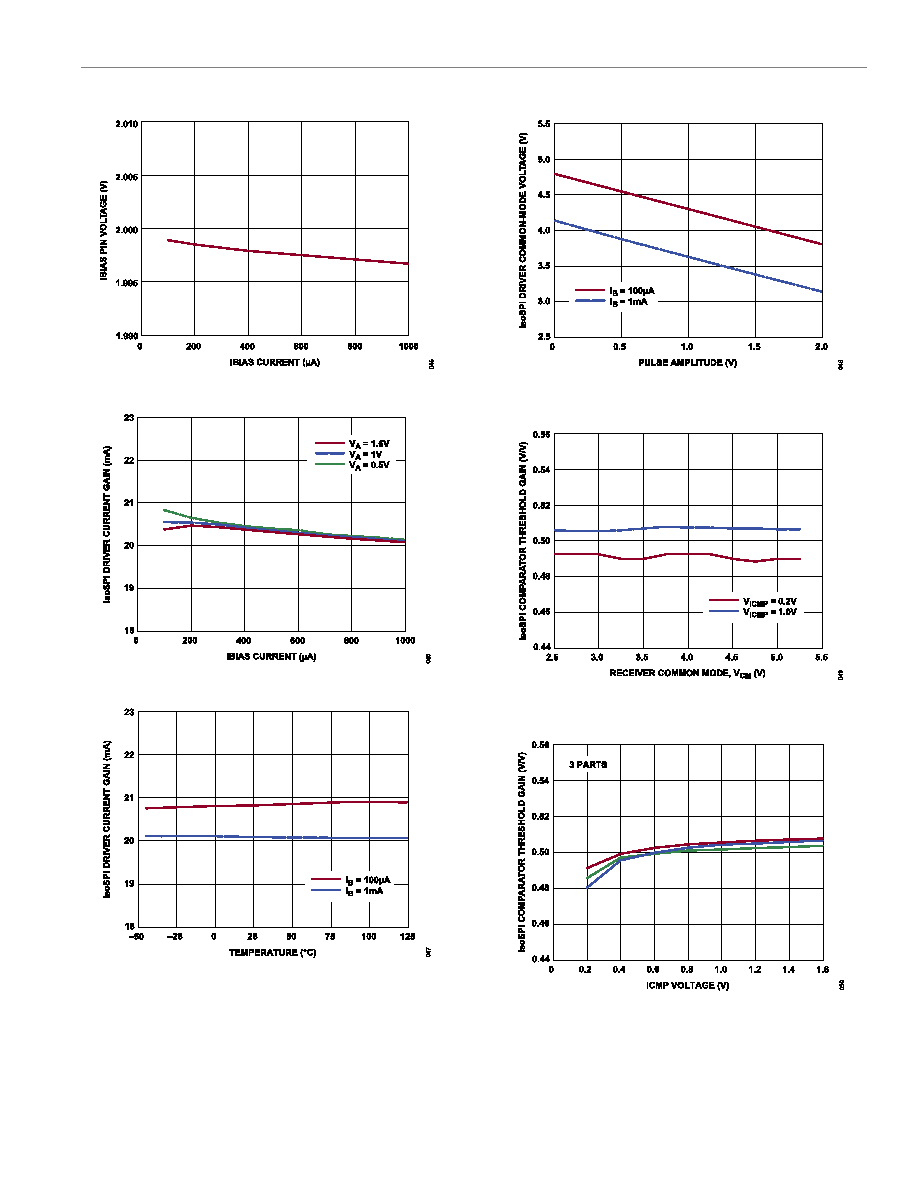

Figure 45. IBIAS Pin Voltage Load Regulation
Figure 46. isoSPI Driver Current Gain (Port A and Port B) vs. IBIAS Current
Figure 47. isoSPI Driver Current Gain (Port A and Port B) vs. Temperature
Figure 48. isoSPI Driver Common-Mode Voltage (Port A and Port B) vs. Pulse
Amplitude
Figure 49. isoSPI Comparator Threshold Gain (Port A and Port B) vs.
Receiver Common Mode
Figure 50. isoSPI Comparator Threshold Gain (Port A and Port B) vs. ICMP
Voltage
