7 / 30 page

LP38853

www.ti.com

SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015

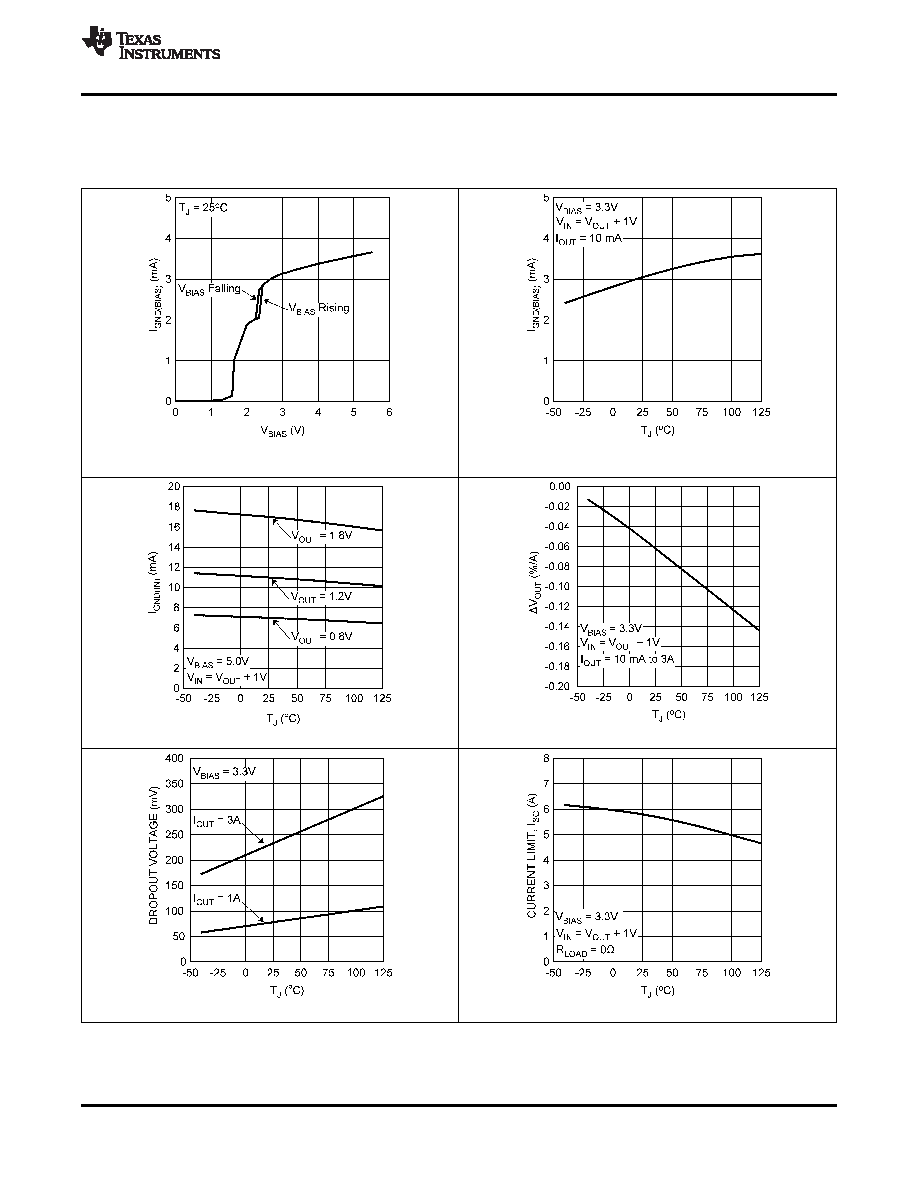

6.7 Typical Characteristics

Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN =

VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open.

Figure 1. BIAS Ground Pin Current (IGND(BIAS)) vs VBIAS

Figure 2. BIAS Ground Pin Current (IGND(BIAS)) vs

Temperature

Figure 4. Load Regulation vs Temperature

Figure 3. IN Ground Pin Current vs Temperature

Figure 5. Dropout Voltage (VDO) vs Temperature

Figure 6. Output Current Limit (ISC) vs Temperature

Submit Documentation Feedback

Product Folder Links: LP38853
