LP38853
www.ti.com
SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015

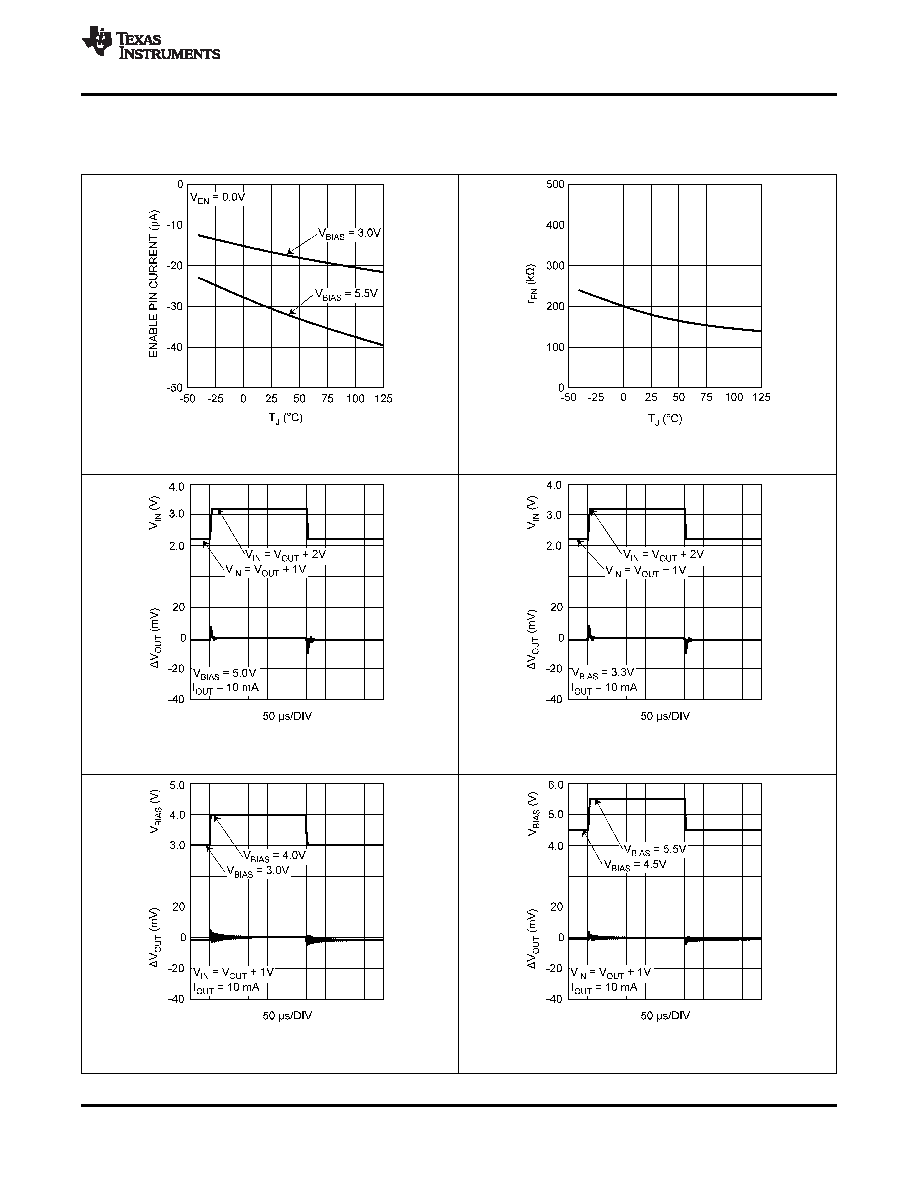

Typical Characteristics (continued)
Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN =
VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open.
Figure 13. Enable Pulldown Current (IEN) vs Temperature
Figure 14. Enable Pullup Resistor (REN) vs Temperature
Figure 15. VIN Line Transient Response
Figure 16. VIN Line Transient Response
Figure 17. VBIAS Line Transient Response
Figure 18. VBIAS Line Transient Response
Copyright © 2006–2015, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Links: LP38853
