ADRF6850BCPZ-R7 Datasheet(PDF) 23 Page - Analog Devices

Part # ADRF6850BCPZ-R7
Description  100 MHz to 1000 MHz Integrated Broadband Receiver
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADRF6850BCPZ-R7 Datasheet(HTML) 23 Page - Analog Devices

Back Button ADRF6850BCPZ-R7 Datasheet HTML 19Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 20Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 21Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 22Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 23Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 24Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 25Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 26Page - Analog Devices ADRF6850BCPZ-R7 Datasheet HTML 27Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 23 / 36 page
background image
ADRF6850
Rev. 0 | Page 23 of 36
REGISTER
ADDRESS
WRITE
COMMAND [0xD4]
•
•
•
•
•
•
•
•
•
START
CS
CLK
SDI
D7
D6
D5
D4
D3
D2
D1
D0
D0
D7
D6
D5
D4
D3
D2
D1
• • •
• • •
• • •
DATA
BYTE
STOP
CS
(CONTINUED)
CLK
(CONTINUED)
SDI
(CONTINUED)
D7
D6
D5
D4
D3
D2
D1
D0

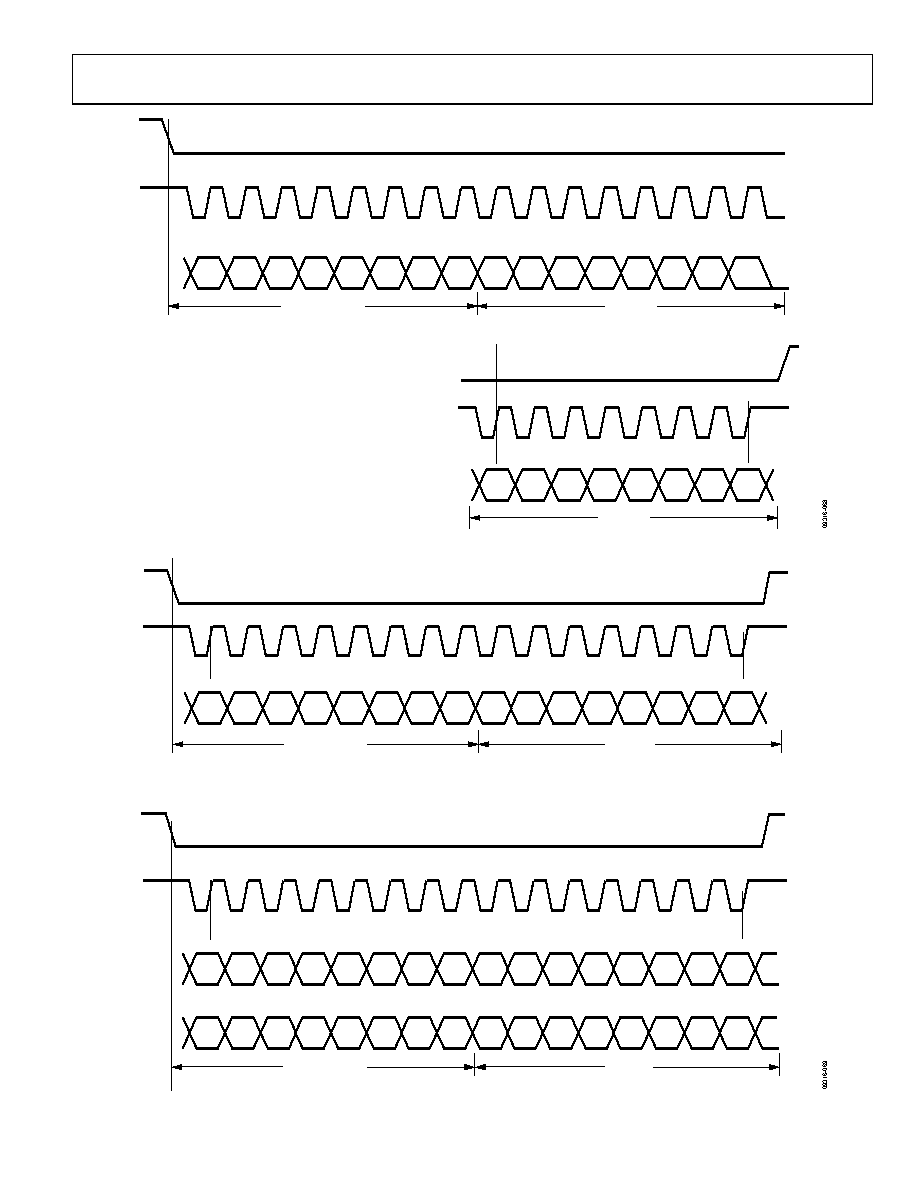

Figure 66. SPI Byte Write Example
REGISTER
ADDRESS
WRITE
COMMAND [0xD4]
START
DATA
BYTE
READ
COMMAND [0xD5]
START
STOP
CS
CLK
SDI
CS
CLK
SDI
SDO
D7
D6
D5
D4
D3
D2
D1
D0
D0
D7
D6
D5
D4
D3
D2
D1
D7
D6
D5
D4
D3
D2
D1
D0
D7
D6
D5
D4
D3
D2
D1
D0
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
• • •
• • •
• • •
Figure 67. SPI Byte Read Example
