Data Sheet
ADRF6820
Rev. C | Page 41 of 45

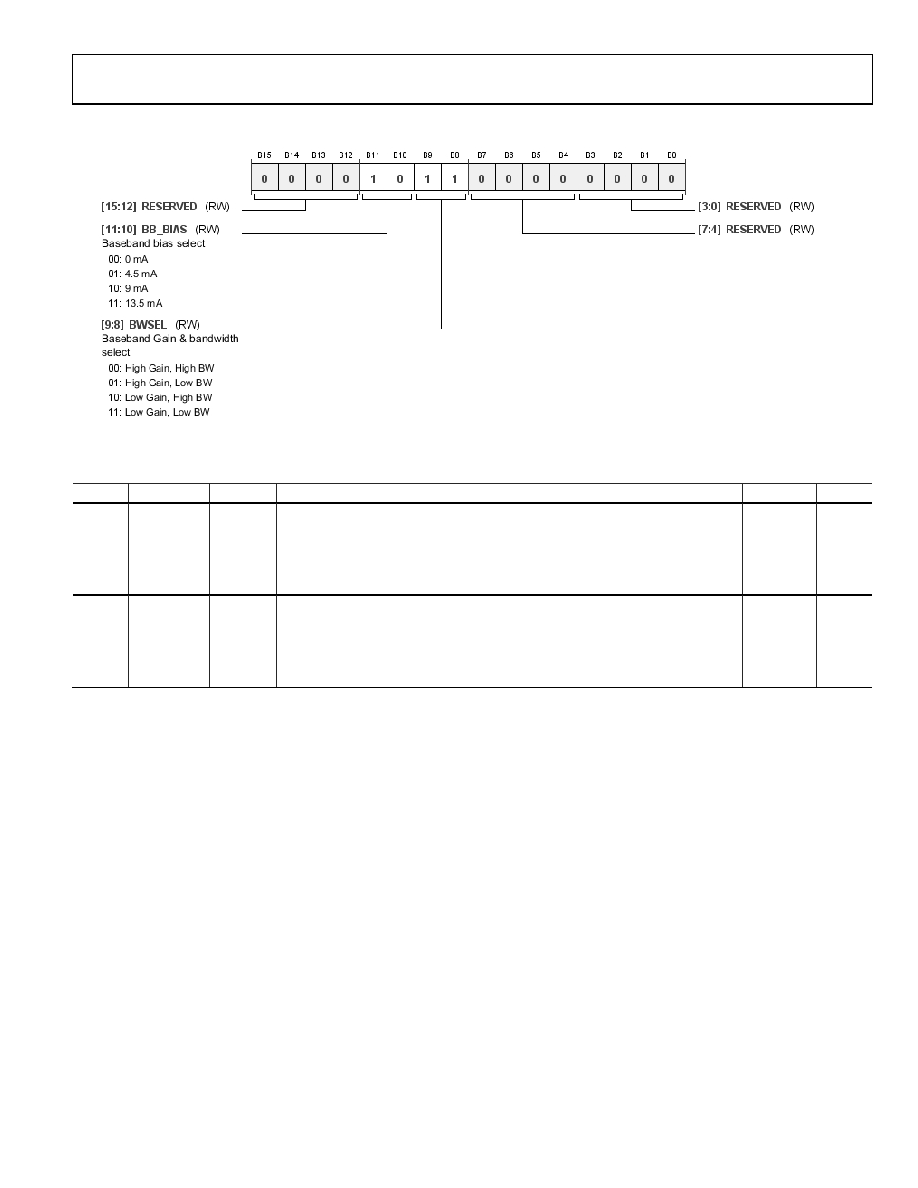

Address: 0x34, Reset: 0x0B00, Name: MOD_CTL2
Table 32. Bit Descriptions for MOD_CTL2
Bits
Bit Name
Settings
Description
Reset
Access
[11:10]
BB_BIAS
Baseband bias select
0x2
RW
00
0 mA
01
4.5 mA
10
9 mA
11
13.5 mA
[9:8]
BWSEL
Baseband gain and bandwidth select
0x3
RW
00
High gain, high bandwidth (refer to Table 15)
01
High gain, low bandwidth (refer to Table 15)
10
Low gain, high bandwidth (refer to Table 15)
11
Low gain, low bandwidth (refer to Table 15)
