AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 17 of 37
Abracon Drawing #453568
Revision: C

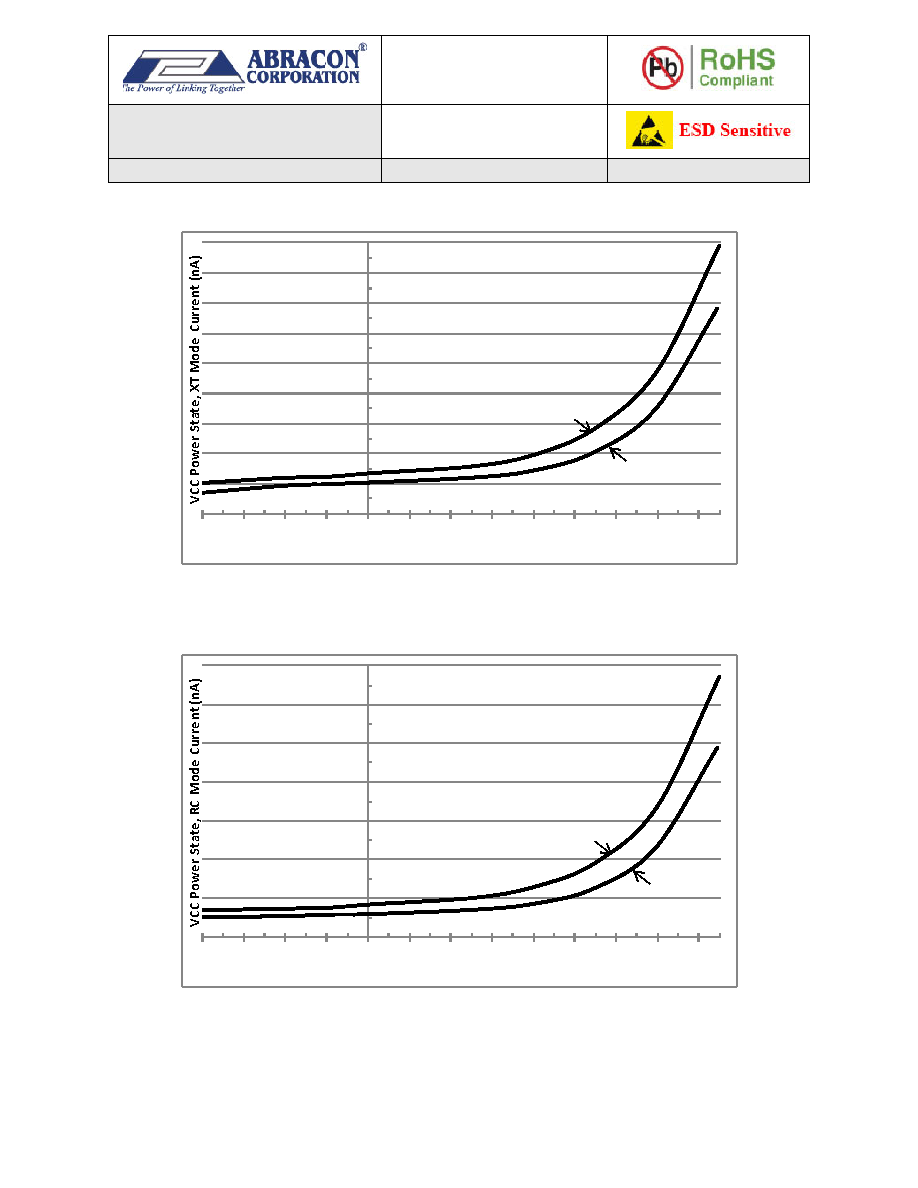

Figure 6 shows the typical VCC power state operating current vs. temperature in XT mode.
Figure 6. Typical VCC Current vs. Temperature in XT Mode
Figure 7 shows the typical VCC power state operating current vs. temperature in RC mode.
Figure 7. Typical VCC Current vs. Temperature in RC Mode
40
50
60
70
80
90
100
110
120
130
‐40
‐30
‐20
‐10
0
1020
304050607080
Temperature (°C)
VCC = 1.8V
VCC = 3.0V
TA = 25 °C
5
15
25
35
45
55
65
75
‐40
‐30
‐20
‐10
0
1020
304050607080
Temperature (°C)
VCC = 1.8V
VCC = 3.0V
TA = 25 °C
