AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 26 of 37
Abracon Drawing #453568
Revision: C
5.9 SPI AC Electrical Characteristics

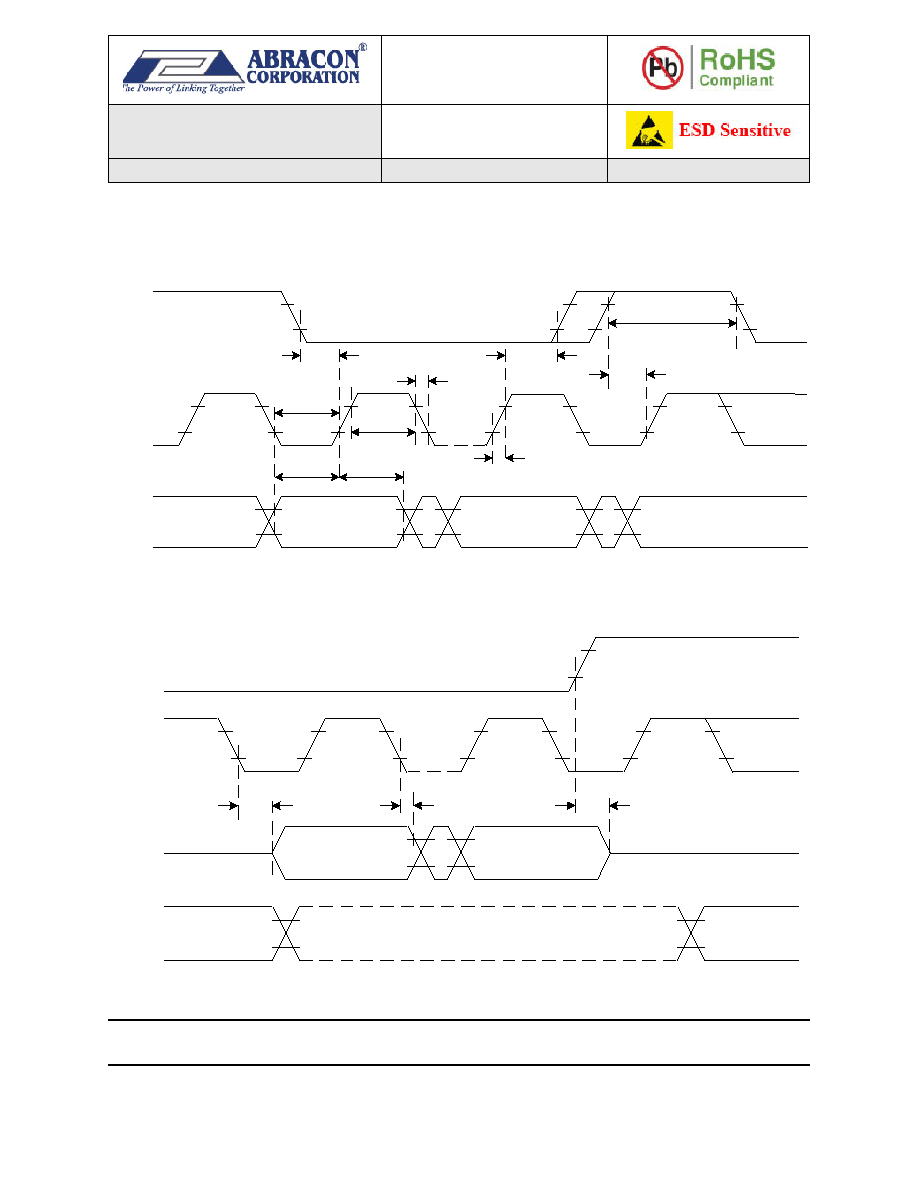

Figure 18, Figure 19, and Table 12 describe the SPI AC electrical parameters.
Figure 18. SPI AC Parameter Definitions – Input
Figure 19. SPI AC Parameter Definitions – Output
For Table 12, T
A = -40 °C to 85 °C, TYP values at 25 °C.
SCL
tHIGH
tLOW
nCE
tSU:NCE
SDI
tSU:SDI
tHD:SDI
MSB IN
LSB IN
tRISE
tFALL
tHD:NCE
tSU:CE
tBUF
SCL
nCE
SDI
tHD:SDO
tSU:SDO
SDO
ADDR LSB
MSB OUT
LSB OUT
tHZ
