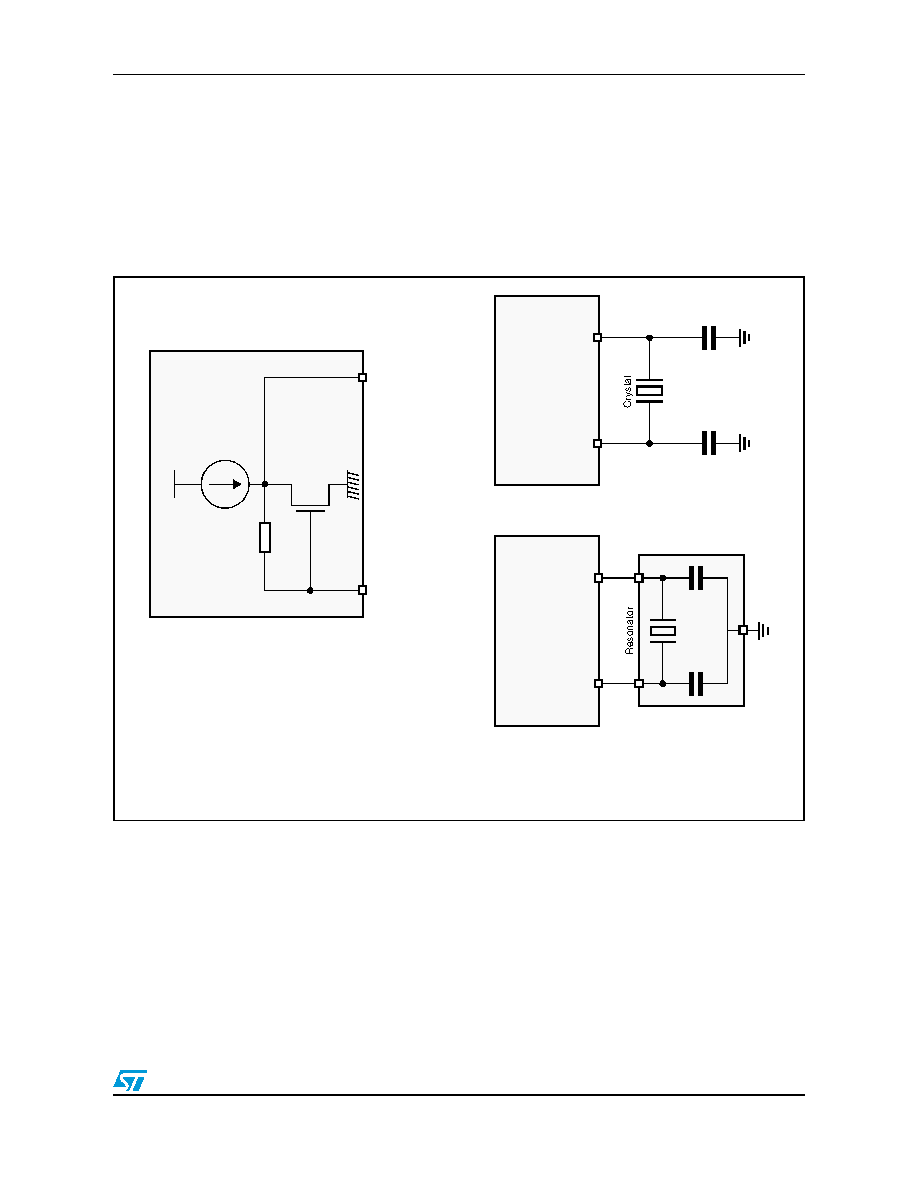

55 / 90 page  SPC560D30x, SPC56040Dx Electrical characteristics Doc ID 16315 Rev 7 55/90 4.13 Fast external crystal oscillator (4 to 16 MHz) electrical characteristics The device provides an oscillator/resonator driver. Figure 9 describes a simple model of the internal oscillator driver and provides an example of a connection for an oscillator or a resonator. Table 36 provides the parameter description of 4 MHz to 16 MHz crystals used for the design simulations. Figure 9. Crystal oscillator and resonator connection scheme C2 C1 XTAL EXTAL XTAL EXTAL DEVICE DEVICE DEVICE XTAL EXTAL I R VDD 2. A series resistor may be required, according to crystal oscillator supplier recommendations. 1. XTAL/EXTAL must not be directly used to drive external circuits Notes: |
|
