Package characteristics
SPC560D30x, SPC56040Dx
78/90
Doc ID 16315 Rev 7
5
Package characteristics
5.1
ECOPACK®
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
5.2
Package mechanical data
5.2.1
LQFP100
Figure 26.

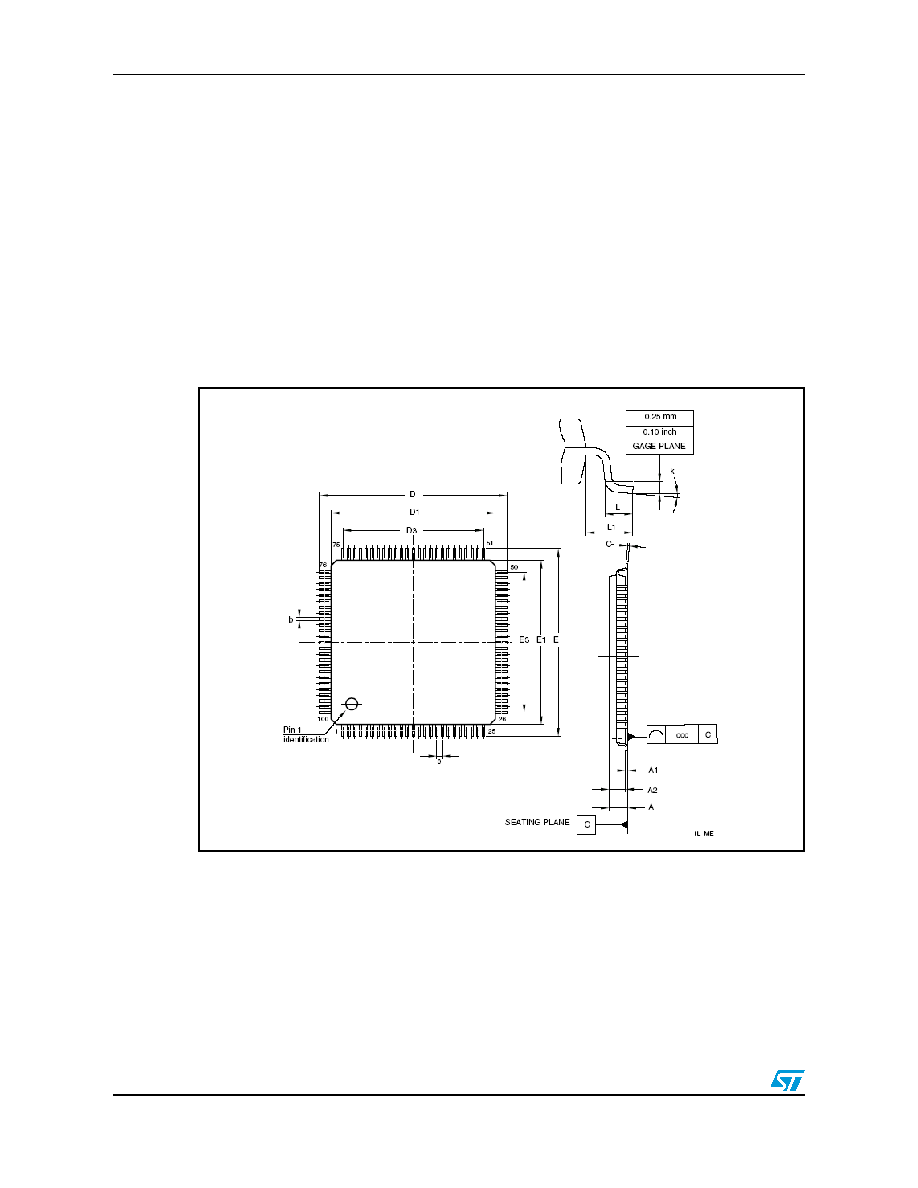

LQFP100 mechanical drawing
