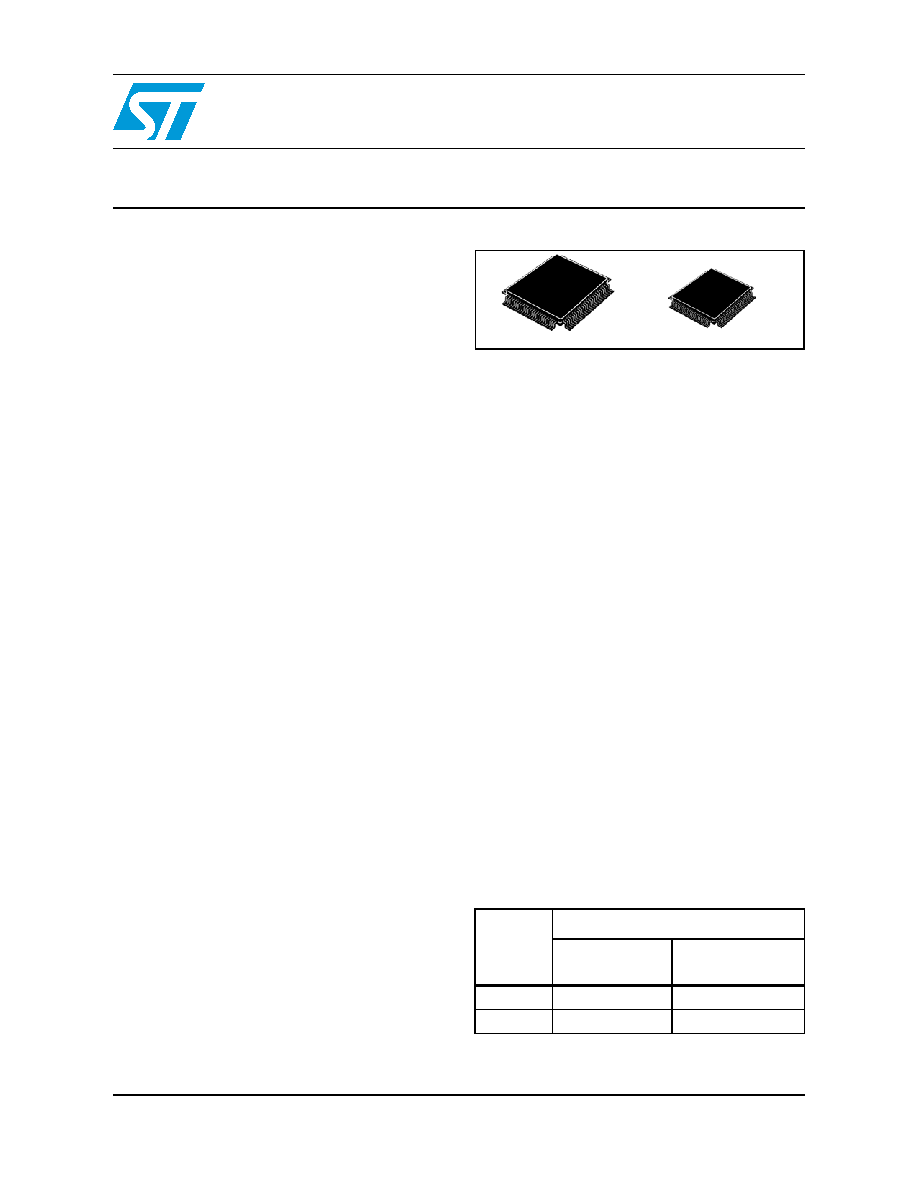

1 / 90 page  This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice. September 2013 Doc ID 16315 Rev 7 1/90 1 SPC560D30x SPC560D40x 32-bit MCU family built on the Power Architecture® for automotive body electronics applications Datasheet preliminary data Features ■ High-performance up to 48 MHz e200z0h CPU – 32-bit Power Architecture® technology CPU – Variable length encoding (VLE) ■ Memory – Up to 256 KB Code Flash with ECC – Up to 64 (4x16) KB Data Flash with ECC – Up to 16 KB SRAM with ECC ■ Interrupts – 16 priority levels – Non-maskable interrupt (NMI) – Up to 38 external interrupts incl. 18 wakeup lines ■ 16-channel eDMA ■ GPIOs: 45 (LQFP64), 79 (LQFP100) ■ Timer units – 4-channel 32-bit periodic interrupt timers – 4-channel 32-bit system timer module – System watchdog timer – 32 bit real-time clock timer ■ 16-bit counter time-triggered I/Os – Up to 28 channels with PWM/MC/IC/OC – 5 independent counters – 27 ch. with ADC trigger capability ■ 12-bit analog-to-digital converter (ADC) with up to 33 channels – Up to 61 channels via external multiplexing – Individual conversion registers – Cross triggering unit (CTU) ■ Dedicated diagnostic module for lighting – Advanced PWM generation – Time-triggered diagnostics – PWM-synchronized ADC measurements ■ Communications interfaces – 1 FlexCAN interface (2.0B active) with 32 message buffers – 3 LINFlex/UART, 1 with DMA capability –2 DSPI ■ Clock generation – 4 to 16 MHz fast external crystal oscillator – 16 MHz fast internal RC oscillator – 128 kHz slow internal RC oscillator – Software-controlled FMPLL – Clock monitoring unit ■ Exhaustive debugging capability – Nexus1 on all packages – Nexus2+ available on emulation device (SPC560B64B2-ENG) ■ On-chip CAN/UART bootstrap loader ■ Low power capabilities – Several low power mode configurations – Ultra-low power standby with RTC,SRAM and CAN monitoring – Fast wakeup schemes ■ Single 5 V or 3.3 V supply ■ Operates in ambient temperature range of -40 to 125 °C Table 1. Device summary Package Part number 128 Kbyte code Flash 256 Kbyte code Flash LQFP100 SPC560D30L3 SPC560D40L3 LQFP64 SPC560D30L1 SPC560D40L1 LQFP100 (14 x 14 x 1.4 mm) LQFP64 (10 x 10 x 1.4 mm) www.st.com |
