SSM2529ACBZ-R7 Datasheet(PDF) 50 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
SSM2529ACBZ-R7 Datasheet(HTML) 50 Page - Analog Devices |
|
|

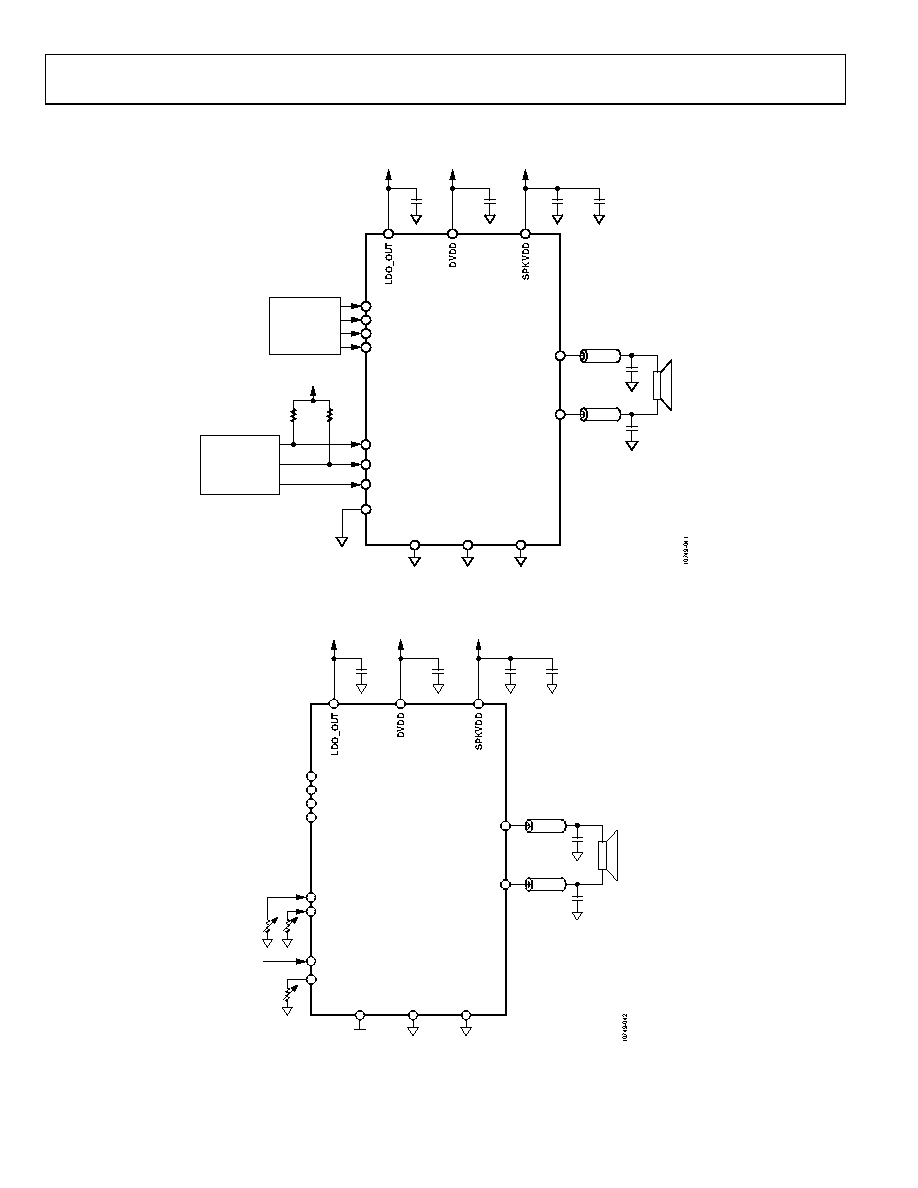

50 / 52 page  SSM2529 Data Sheet Rev. 0 | Page 50 of 52 APPLICATIONS INFORMATION Figure 42. Software Mode (with I2C Interface) Figure 43. Hardware Standalone Mode SSM2529 ADDR OUTP OUTN 100nF 10µF SPKVDD (2.5V TO 5.5V) 100nF DVDD (1.08V TO 1.98V) 1µF LDO_OUT (1.8V) SPKGND GND SA_MODE 2.2k Ω 2.2k Ω SYSTEM CONTROLLER IOVDD (1.8V TO 3.6V) STDBN SCL SDA AUDIO PROCESSOR BCLK LRCLK SDATA MCLK SSM2529 OUTP OUTN 100nF 10µF SPKVDD (2.5V TO 5.5V) 100nF DVDD (1.08V TO 1.98V) 1µF LDO_OUT (1.8V) SPKGND GND SA_MODE SPKVDD STDBN BCLK LRCLK SDATA MCLK SDA SCL ADDR |
|
