ADA4351-2ACPZ-R7 Datasheet(PDF) 13 Page - Analog Devices

Part # ADA4351-2ACPZ-R7
Description  Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA)
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADA4351-2ACPZ-R7 Datasheet(HTML) 13 Page - Analog Devices

Back Button ADA4351-2ACPZ-R7 Datasheet HTML 9Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 10Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 11Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 12Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 13Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 14Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 15Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 16Page - Analog Devices ADA4351-2ACPZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 36 page
background image
Data Sheet
ADA4351-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 36

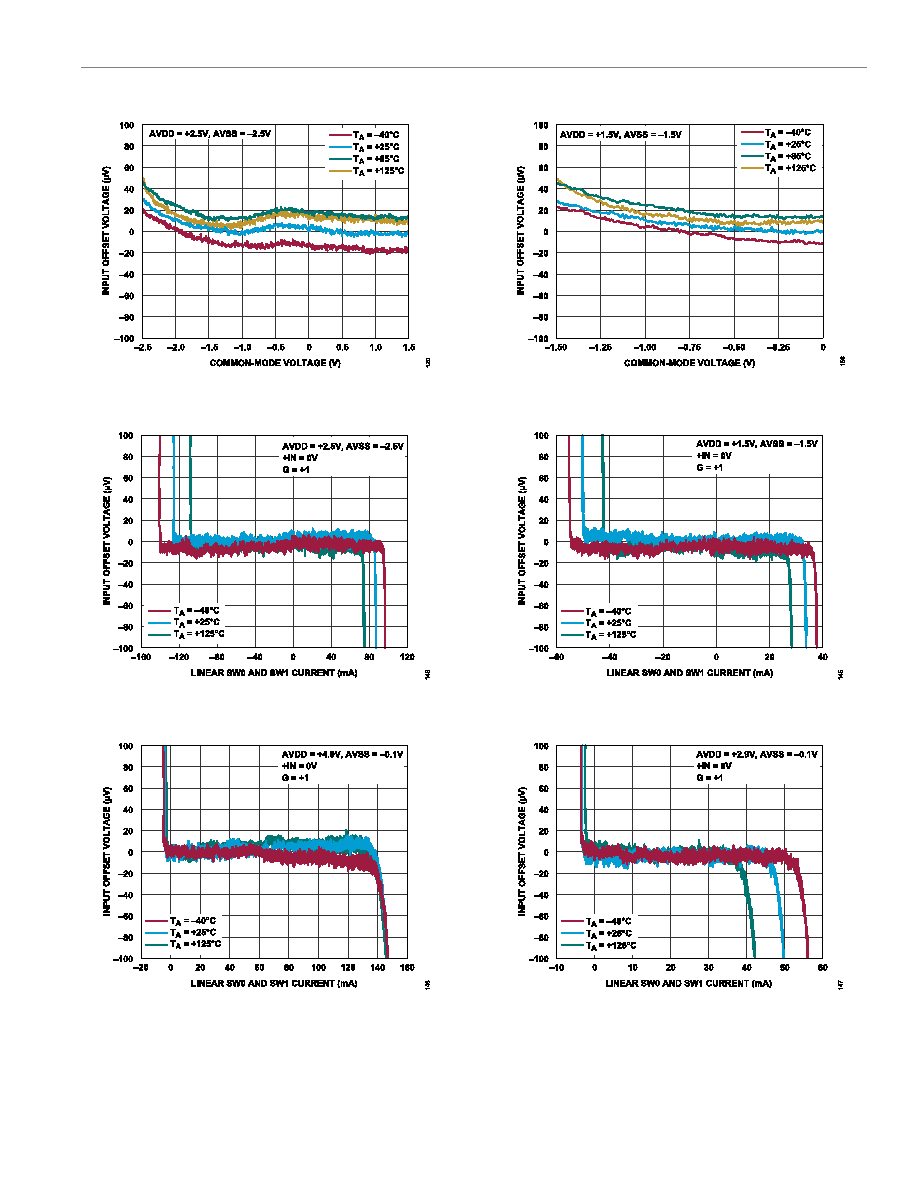

Figure 18. Input Offset Voltage vs. Common-Mode Voltage at Various
Temperatures, AVDD = +2.5 V, AVSS = –2.5 V
Figure 19. Input Offset Voltage vs. Linear SW0 and SW1 Current at Various
Temperatures, AVDD = +2.5 V, AVSS = –2.5 V
Figure 20. Input Offset Voltage vs. Linear SW0 and SW1 Current at Various
Temperatures, AVDD = +4.9 V, AVSS = –0.1 V
Figure 21. Input Offset Voltage vs. Common-Mode Voltage at Various
Temperatures, AVDD = +1.5 V, AVSS = –1.5 V
Figure 22. Input Offset Voltage vs. Linear SW0 and SW1 Current at Various
Temperatures, AVDD = +1.5 V, AVSS = –1.5 V
Figure 23. Input Offset Voltage vs. Linear SW0 and SW1 Current at Various
Temperatures, AVDD = +2.9 V, AVSS = –0.1 V
