ADRF6612
Data Sheet
Rev. A | Page 52 of 57
EVALUATION BOARD
An evaluation board is available for the ADRF6612. The standard
evaluation board schematic is presented in Figure 102. The USB
interface circuitry schematic is presented in Figure 104. The
evaluation board layout is shown in Figure 105 and Figure 106.
The evaluation board is fabricated using Rogers® 3003 material.
Table 50 details the configuration for the mixer characterization.
The evaluation board software is available on the ADRF6612
product page.

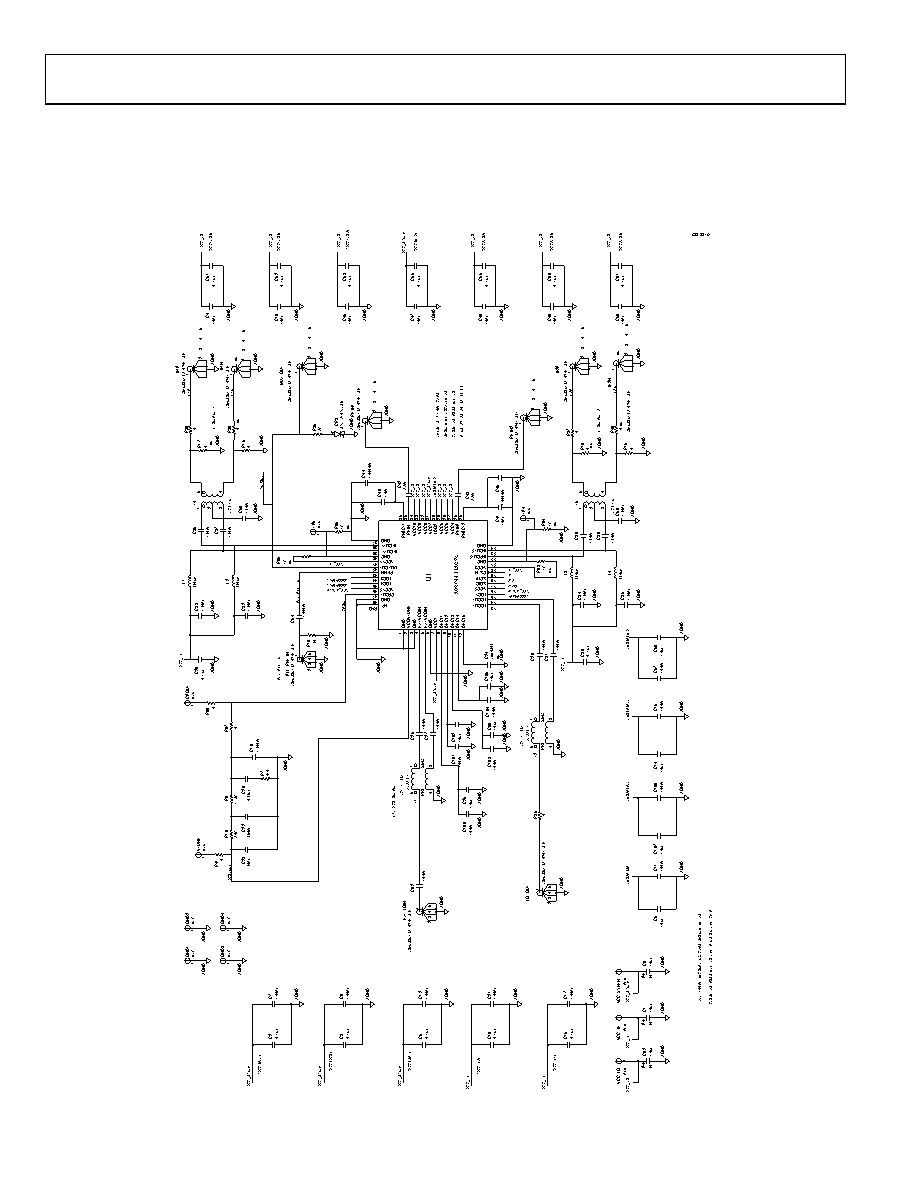

Figure 102. Evaluation Board, Main Circuitry
