EM351 / EM357

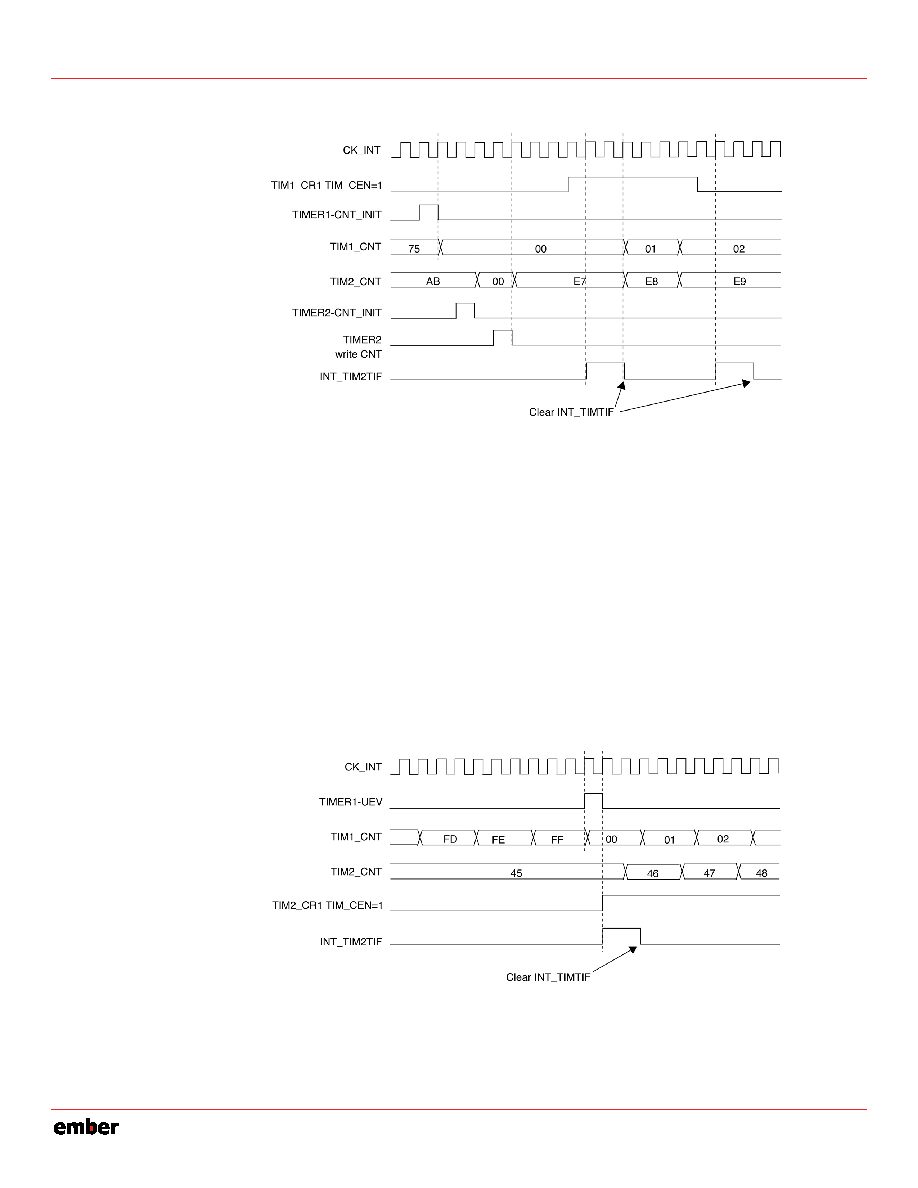

Figure 9-33. Gating Timer 2 with Enable of Timer 1

9.3.14.3

Using One Timer to Start the Other Timer

In this example (see Figure 9-34), the enable of Timer 2 is set with the UEV of Timer 1. Timer 2 starts counting

from its current value (which can be non-zero) on the divided internal clock as soon as Timer 1 generates the

UEV.

When Timer 2 receives the trigger signal its TIM_CEN bit is automatically set and the counter counts until 0 is

written to the TIM_CEN bit in the TIM2_CR1 register. Both counter clock frequencies are divided by 3 by the

prescaler compared to CK_INT (fCK_CNT = fCK_INT/3).

Configure Timer 1 in master mode to send its UEV as trigger output: WriteTIM_MMS = 010 in the TIM1_CR2

Configure the Timer 1 period (TIM1_ARR register).

Configure Timer 2 to get the input trigger from Timer 1: Write TIM_TS = 000 in the TIM2_SMCR register.

Configure Timer 2 in trigger mode. Write TIM_SMS = 110 in the TIM2_SMCR register.

Start Timer 1: Write 1 in the TIM_CEN bit in theTIM1_CR1 register.

Figure 9-34. Triggering Timer 2 with Update of Timer 1

As in the previous example, both counters can be initialized before starting counting. Figure 9-35 shows the

behavior with the same configuration shown in Figure 9-34, but in trigger mode instead of gated mode

(TIM_SMS = 110 in the TIM2_SMCR register).

9-27

120-035X-000D

Preliminary
