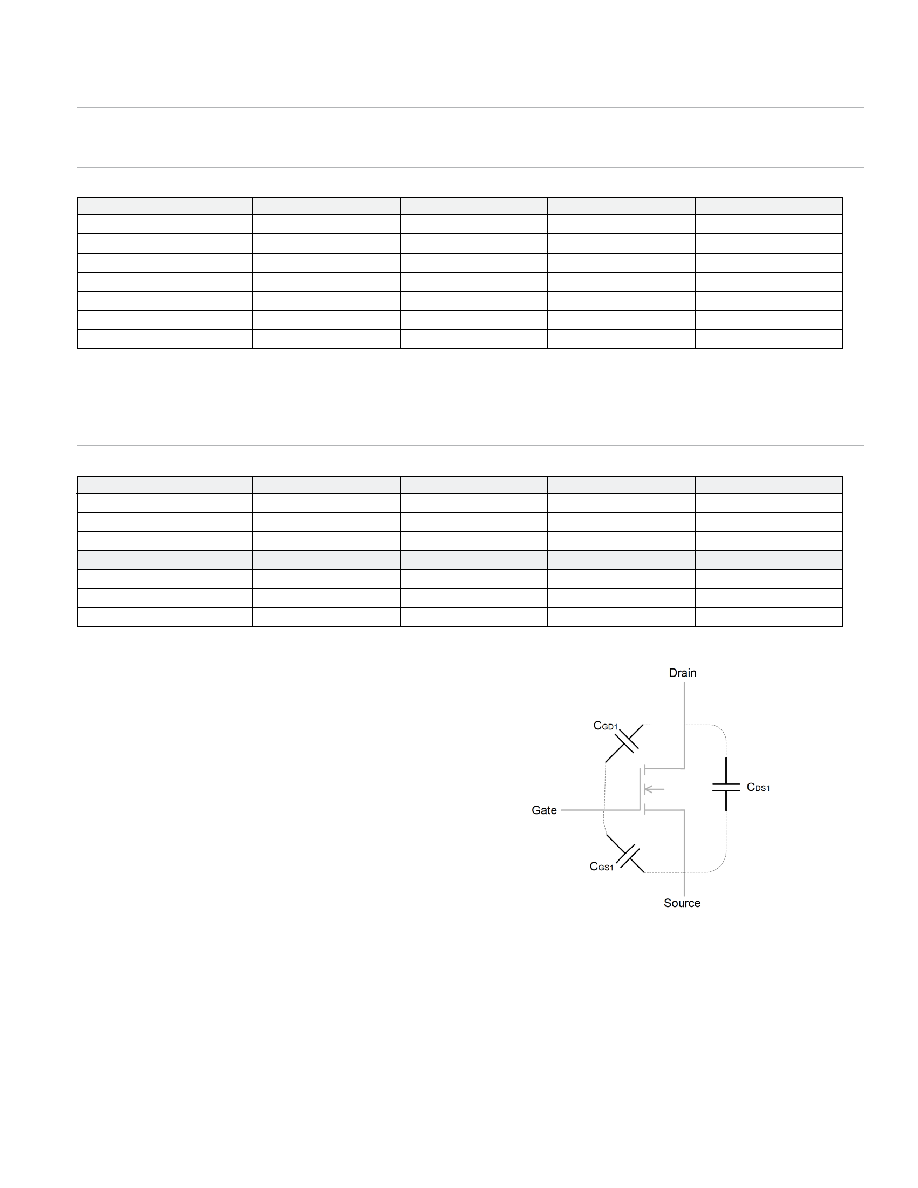

21 / 45 page  Datasheet TEK.COM 22 CVU DC Bias Function, using SMU Instrument in bias tee DC biasing of AC signals is provided by the 42XX-SMU instrument modules. Range ±210V at 1 mA maximum (420 V differential) Typical Accuracy of 4210-CVU through the 4200A-CVIV Multi-Switch, 2-terminal bias tee Measured Capacitance 1 kHz 10 kHz 100 kHz 1 MHz 1 pF Not Specified Not Specified ±2.4% ±0.7% 10 pF Not Specified ±2.9% ±0.5% ±0.5% 100 pF Not Specified ±0.5% ±0.5% ±0.5% 1 nF ±1.9% ±0.5% ±0.5% ±0.5% 10 nF ±0.7% ±0.5% ±0.5% ±0.75% 100 nF ±0.7% ±0.5% ±0.5% ±2.3% 1 µF ±3.5% ±2.0% Not Specified Not Specified Notes • These specs are typical, non-warranted, apply at 23°C, and are provided solely as useful information. • Measurements were taken using CVIV 2-wire and Bias Tee Low I modes. • Measurement speed: Quiet, Test signal level: 30mV rms, AC Measure I Range: Auto • Valid when CVU CVIV compensation is applied from a <1 month old compensation acquisition. Typical Accuracy of 4210-CVU through the 4200A-CVIV Multi-Switch, 3-terminal bias tee Measured Capacitance 1 kHz 10 kHz 100 kHz 1 MHz Cgd = 100 pF Not Specified ±5.0% ±5.0% Not Specified Cds = 1 nF ±10.0% ±2.0% ±2.0% ±30.0% Cgs = 10 nF ±3.0% ±2.0% ±2.0% ±3.0% Measured Capacitance 1 kHz 10 kHz 100 kHz 1 MHz Cgd = 100 pF Not Specified ±2.0% ±2.0% ±5.0% Cds = 420 pF ±20.0% ±2.0% ±2.0% ±5.0% Cgs = 1 nF ±6.0% ±2.0% ±2.0% ±3.0% Notes • These specs are typical, non-warranted, apply at 23°C, and are provided solely as useful information. • Measurements taken using the following CVIV configuration: - Ch1: BiasT: SMU LO I CV HI - Ch2: BiasT: SMU LO I CV LO - Ch3: Ground Unit - Ch4: Open - 2-Wire Mode • Measurement speed: Quiet, Test signal level: 30mV rms, AC Measure I Range: Auto • Valid when CVU CVIV compensation is applied from a <1 month old compensation acquisition. |
|
