Data Sheet
ADA4352-2
analog.com
Rev 0
45 of 47

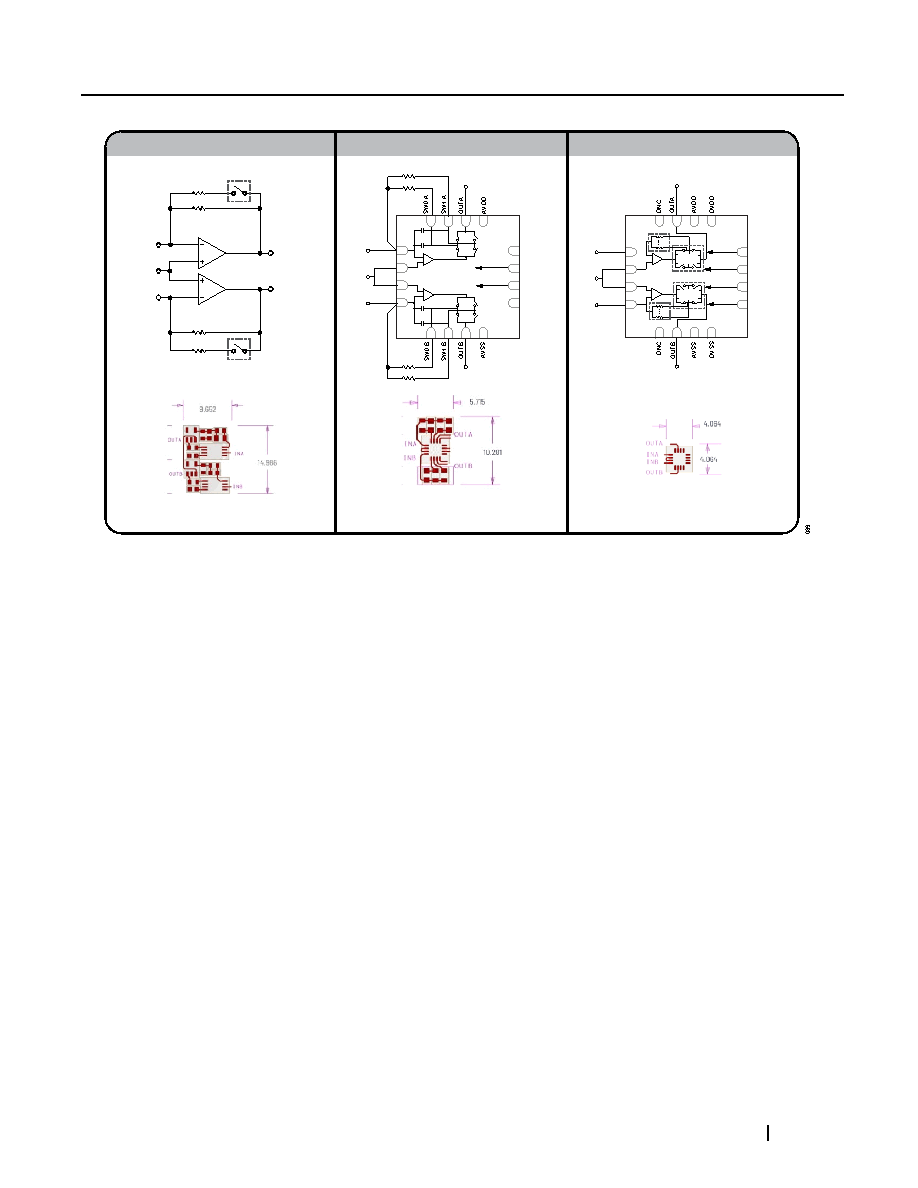

Figure 86. Comparison in Footprint Size for a Similar Discrete Solution, ADA4351-2, and ADA4352-2
–IIN A
V
CM
+IN A
−IN A
+IN B
−IN B
–IIN B
VOUTA
VOUTA
VOUTB
SW SEL0 A
SW SEL1 A
SW SEL1 B
SW SEL0 B
ADA4352-2
GAIN RESISTOR
NETWORK
GAIN RESISTOR
NETWORK
KELVIN
SWITCH
NETWORK
KELVIN
SWITCH
NETWORK
+
–
+
–
+
–
–IIN A
V
CM
V
CM
+IN A
−IN A
+IN B
−IN B
–IIN B
VOUTB
DVDD
SW SEL A
SW SEL B
DVDSS
ADA4351-2
INTERNAL
CCOMP
CF
CF
CF
+
–
INTERNAL
CCOMP
CF
177.7mm2
55.6mm2
31% vs. DISCRETE SIZE
15.3mm2
8.6% vs. DISCRETE SIZE
VOUTA
RA1
RA0
RB1
RB0
RA1
RA0
RB1
RB0
IINA
IIN
A
VOUTB
DISCRETE
ADA4351-2
ADA4352-2
