EM342
Rev 1.0
121
17. Pin Definitions
17.1. Pin Definitions

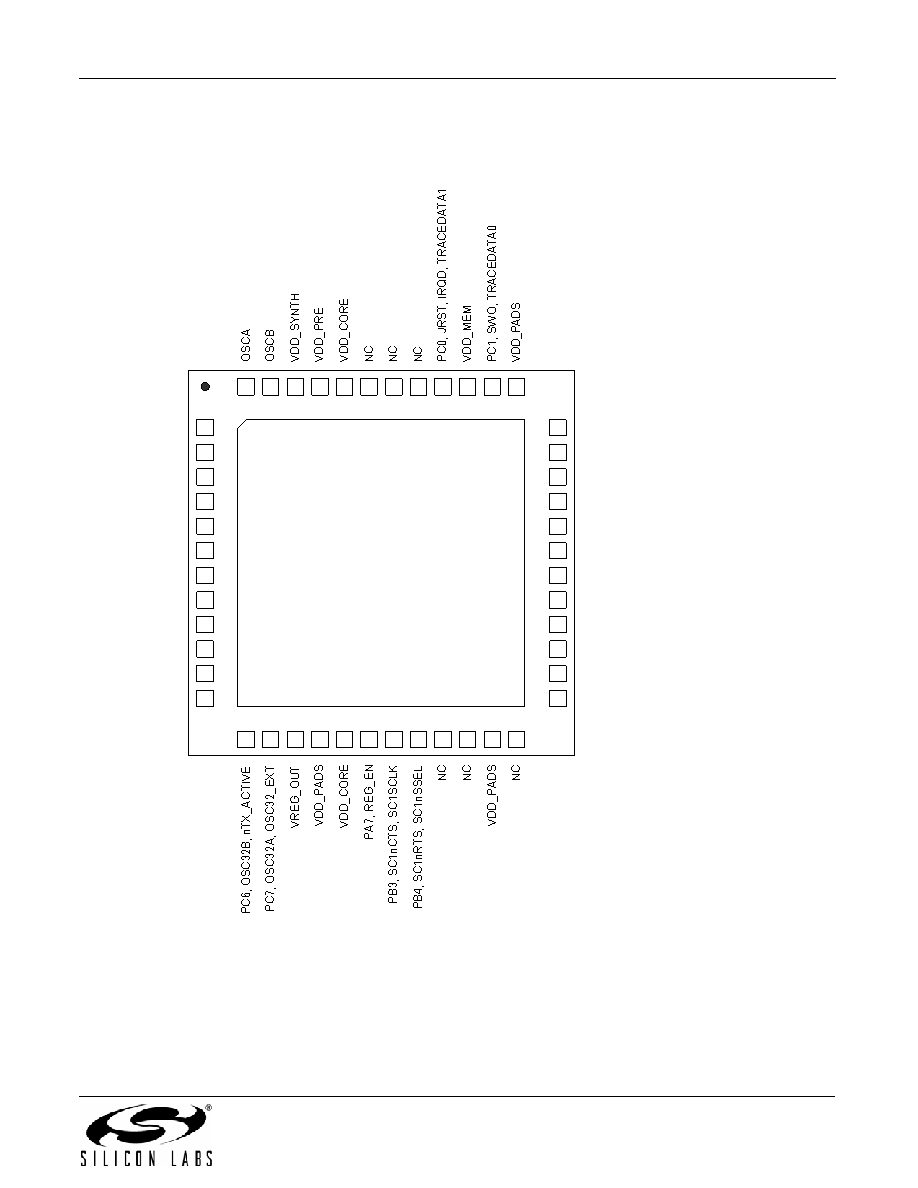

Figure 17.1. EM342 Pin Definitions
Refer to "7. GPIO (General Purpose Input/Output)" on page 48 for details about selecting GPIO pin functions.
VDD_24MHZ
VDD_VCO
RF_N
RF_P
VDD_RF
RF_TX_ALT_P
RF_TX_ALT_N
VDD_IF
NC
VDD_PADSA
PC5, TX_ACTIVE
PB0, VREF, IRQA, TRACECLK
PC4, JTMS, SWDIO
PC3, JTDI
PC2, JTDO, SWO
SWCLK, JTCK
PB2, SC1MOSI, SC1RXD
PB1, SC1MISO, SC1TXD
NC
VDD_PADS
PA5, PTI_DATA, nBOOTMODE, TRACEDATA3
PA4, PTI_EN, TRACEDATA2
NC
13 14 15 16 17 18 19 20 21 22 23 24
12
11
nRESET
10
9
8
7
6
5
4
3
2
1
25
26
27
28
29
30
31
32
33
34
35
36
48 47 46 45 44 43 42 41 40 39 38 37
49
GND
