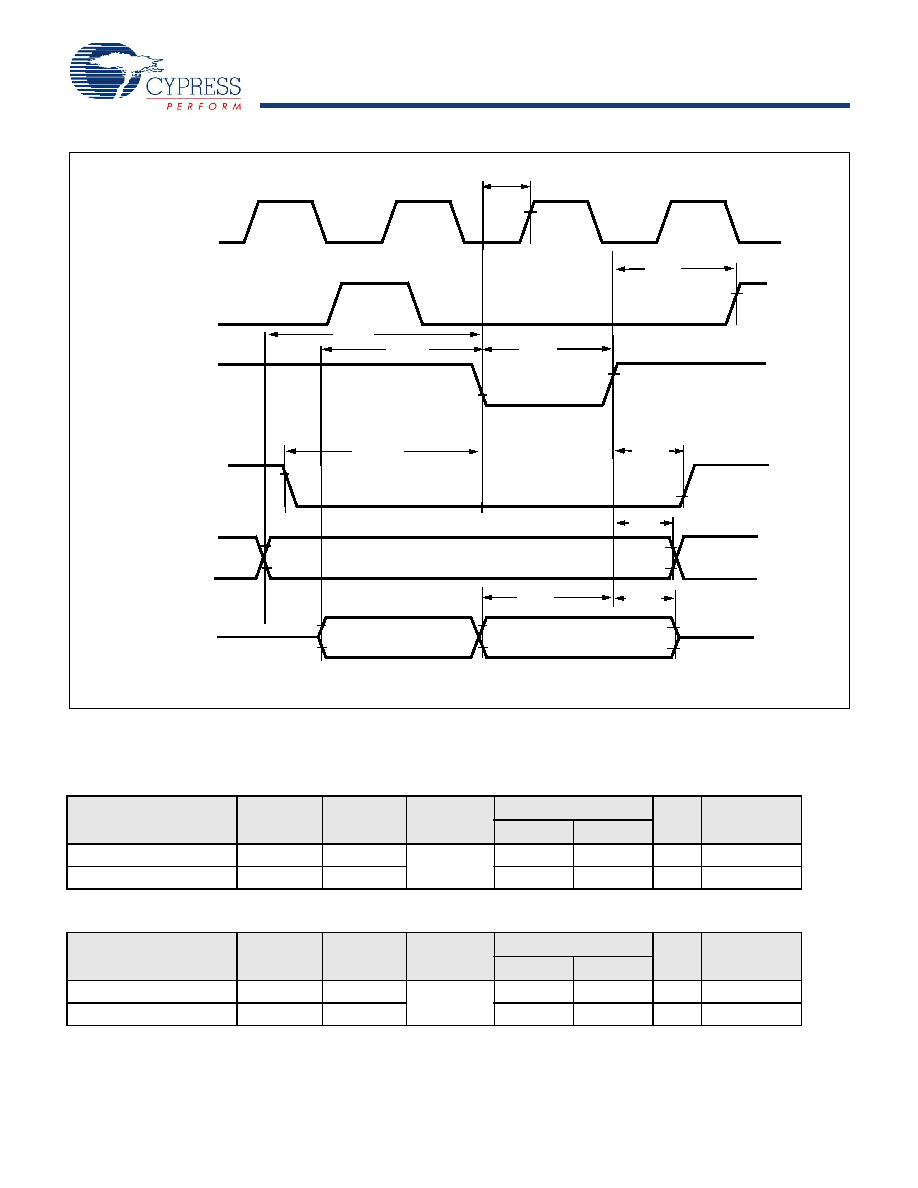

MB96340 Series
Document Number: 002-04579 Rev. *A
Page 83 of 109
.
14.4.10
Ready Input Timing
Note: If the RDY setup time is insufficient, use the auto-ready function.
(TA  40°C to 125°C, VCC  5.0 V  10, VSS  0.0 V, IOdrive = 5mA, CL = 50pF)
Parameter
Symbol
Pin
Test
Condition
Rated Value
Units
Remarks
Min
Max
RDY setup time
tRYHS
RDY
-
35
-
ns
RDY hold time
tRYHH
RDY
0
-
ns
(TA  40°C to 125°C, VCC  3.0 to 4.5V, VSS  0.0 V, IOdrive = 5mA, CL = 50pF)
Parameter
Symbol
Pin
Test
Condition
Rated Value
Units
Remarks
Min
Max
RDY setup time
tRYHS
RDY
-
45
-
ns
RDY hold time
tRYHH
RDY
0
-
ns
ECLK
tWLCH
0.8*VCC
ALE
tWHLH
WRX (WRLX, WRHX)
tWLWH
tADVWL
A[23:16]
tWHAX
AD[15:0]
Address
Write data
tDVWH
tWHDX
CSn
tWHCS
tAVWL
tCSLWL
0.2*VCC
Refer to the Hardware Manual for detailed Timing Charts
