Data Sheet
ADMV1455
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 41 of 141
Power Detector

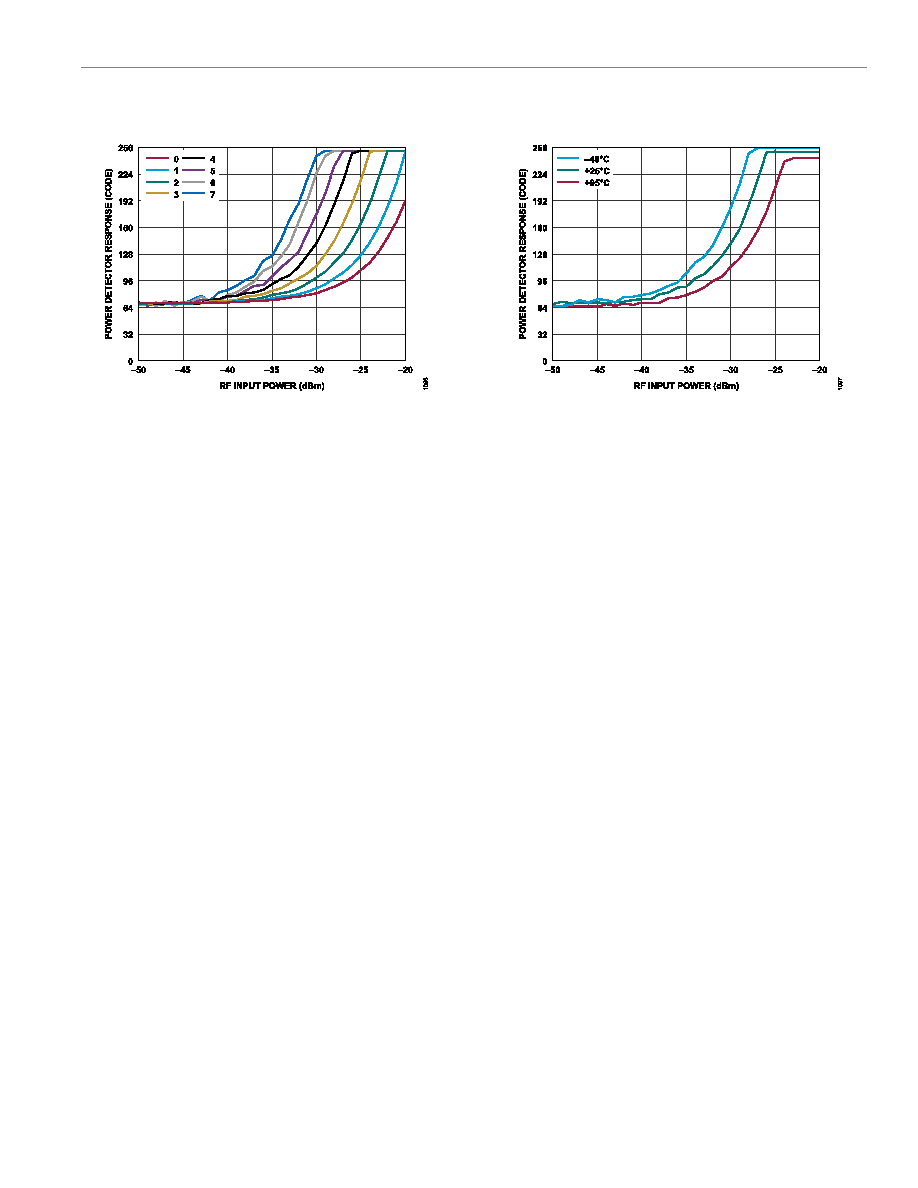

Figure 96. Power Detector Response vs. RF Input Power at Various Detector
Resistor Control Settings
Figure 97. Power Detector Response vs. RF Input Power at Various
Temperatures, Detector Resistor Control Setting = 4
